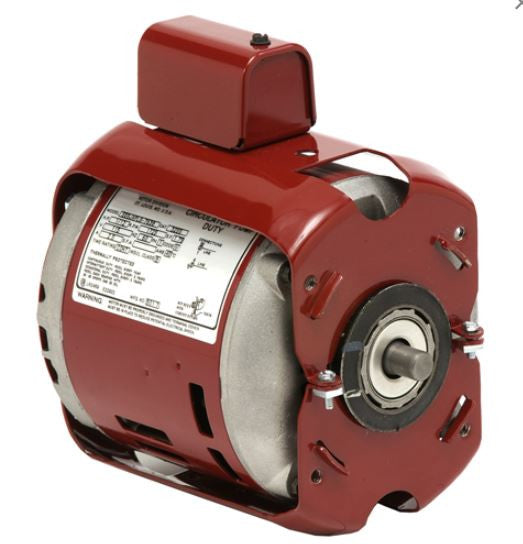

This is a US Motors 3256 split phase hot water circulating pump motor. It operates at 1/6 HP with a speed of 1725 RPM and a 48YZ frame. The motor is designed for 115V and 60 Hz power supply, drawing 3.8 Amps with a service factor of 1.75. It features an Open Dripproof (ODP) enclosure, a single speed, and is built with Class B insulation. The motor includes an automatic reset thermal overload protector and sleeve bearings with an all-angle thrust system. It is cUL/UL Listed and CSA US certified. The motor is painted red to indicate hot water usage and can operate in ambient temperatures up to 40° C. It has a 1/2" x .250" shaft and an overall length of 7.875".
US MOTORS 3256 Pump Motor, 1/6 HP, 1725 RPM, 115V, 1-Phase, 48YZ Frame, 1/2" Shaft
Specifications
| Voltage | 115 V |
|---|---|
| Horsepower | 1/6 HP |
| RPM | 1725 RPM |
| Phase | 1 Ph |
| Frame | 48YZ |
| Frequency | 60 Hz |
| Shaft Diameter | 1/2 |
