The US Motors 3257 is a 0.167 HP, 1-phase split-phase motor operating at 1725 RPM. It features an Open Dripproof (ODP) enclosure, NEMA frame 48YZ, and runs on 115V with a 60Hz frequency. The motor has 4 poles, 1 speed, and ball bearings at both ends. Its insulation class is B, and it has an automatic thermal reset. The nominal efficiency is 51.4%, with a full load amperage of 3.8A and a service factor amperage of 4.9A. The maximum ambient temperature is 50°C.

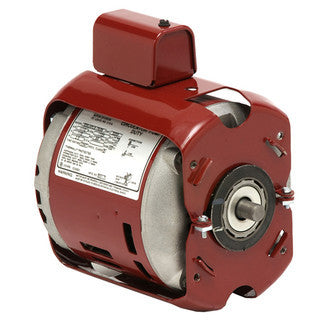

US MOTORS 3257 Pump Motor, 1/6 HP, 115V, 1725 RPM, 1 Ph, 60Hz, 48YZ Frame, ODP
Specifications
| Voltage | 115 V |
|---|---|
| Horsepower | 1/6 HP |
| RPM | 1725 RPM |
| Phase | 1 Ph |
| Frame | 48YZ |
| Frequency | 60 Hz |
