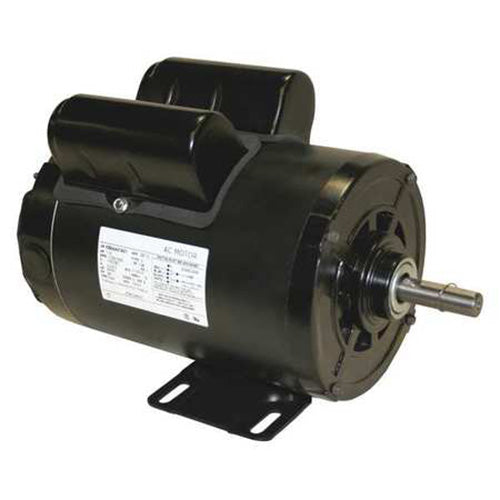

# C689 - 1.5 HP, 208-230/115 Volt

This AO Smith # C689 motor delivers reliable performance with 1.5 HP and a versatile voltage range of 208-230/115 Volts. Designed for efficiency and durability, it features Class 'B' Insulation, a rigid base for secure mounting, and a reversible rotation for flexible application. The open drip-proof enclosure is suitable for various environments, and the keyed shaft ensures secure power transfer. This capacitor start motor operates at 1725 RPM, making it a robust choice for many applications.

Technical Details

The AO Smith # C689 is a 1.5 HP, single-phase capacitor start motor operating at 1725 RPM. It supports dual voltage input of 208-230V with a 7.80-7.50 Amp draw, and 115V with a 15.00 Amp draw. The motor features a 6-1/2" diameter, NEMA 56H frame, and an open drip-proof enclosure. Key specifications include a 5/8" x 1-7/8" keyed shaft, ball bearings, a service factor of 1.20, and Class 'B' insulation. The motor is designed with a rigid base and reversible rotation, suitable for ambient temperatures up to 40°C. Its dimensions are 10-13/16" in length with a "C" dimension of 12-23/32".
