The Century AO Smith H963 is a 1/2 HP, 3-phase condenser fan motor with a nameplate RPM of 1140 and a voltage rating of 575V. It features an open enclosure and ball bearings for reliable operation. The motor operates at 60 Hz with a single speed and has a service factor of 1.0. The shaft measures 6 inches in length and has a diameter of 0.625 inches, with both a keyway and a flat. It includes thermal protection and is designed for air-over cooling. The motor is rated for 60 degrees Celsius ambient temperature.

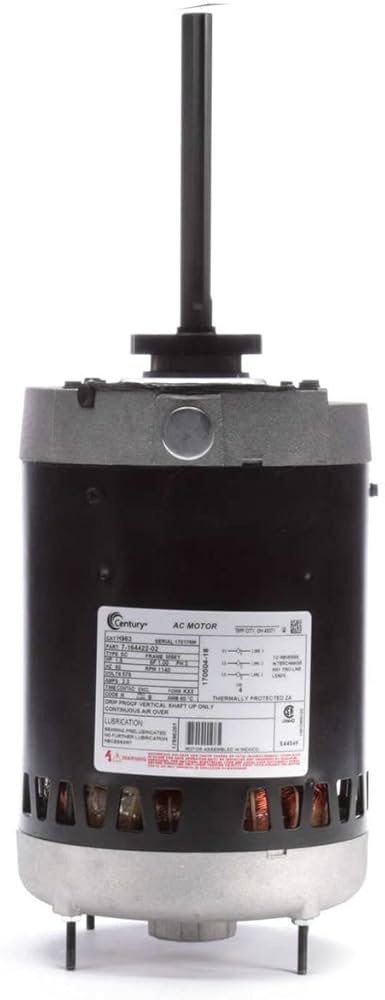

Century A.o. Smith 1-1/2hp 1140 RPM 575v Fr 56y ..2.2 A Ballbearing Marathon
Specifications
| Voltage | 575 V |
|---|---|
| Horsepower | 1/2 HP |
| RPM | 1140 RPM |
| Phase | 3 Ph |
| Frequency | 60 Hz |
| Shaft Diameter | 5/8 |
