RBC Regal Beloit D234 TEAO Motor, 1/15 HP, 115V, 1500 RPM, 1 Ph, 3.3" Dia, 5/16" Shaft

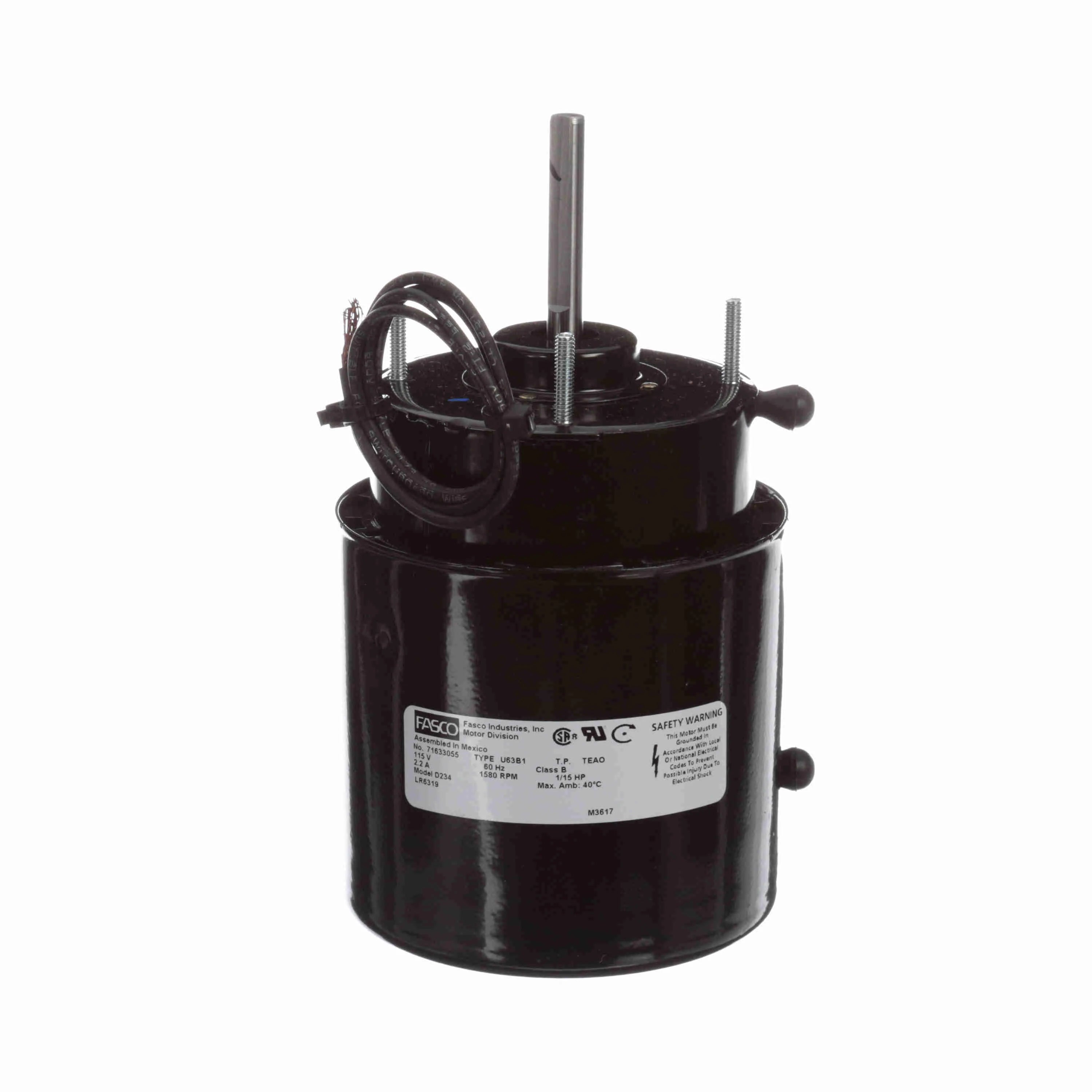

The Fasco D234 is a versatile, self-cooled electric fan motor designed for general purpose applications. Featuring a robust 1/15 HP motor, it operates at 1500 RPM and 115 volts, ensuring efficient performance. This motor is built with a durable 3.3-inch frame diameter and sleeve bearings for reliable operation. It is fan-cooled to maintain optimal operating temperatures.
Technical Details
This Fasco D234 motor is a 1/15 HP, 115-volt unit with a 3.3-inch frame diameter. It operates at 1500 RPM and is designed for single-speed applications. The motor features sleeve bearings, a 0.312-inch shaft diameter, and a 2.25-inch shaft length. It is totally enclosed and fan-cooled for self-cooling operation.
Technical Specifications
| Voltage | 115 |
| Horsepower | 1/15 |
| RPM | 1500 |
| Phase | 1 |
| Frame Size | 3.3\ |
| Enclosure | TE (TOTALLY ENCLOSED) |
| Frequency | 60 |
| Full Load Amps | 2.2 |
| Shaft Diameter | 5/16 |
| Shaft Length | 2-1/4 |
| Mounting | Extended Studs |
| Thermal Protection | No |
| Service Factor | 1 |
| Insulation Class | B |
| Rotation Direction | CW |
| Certifications | UL, CSA |
