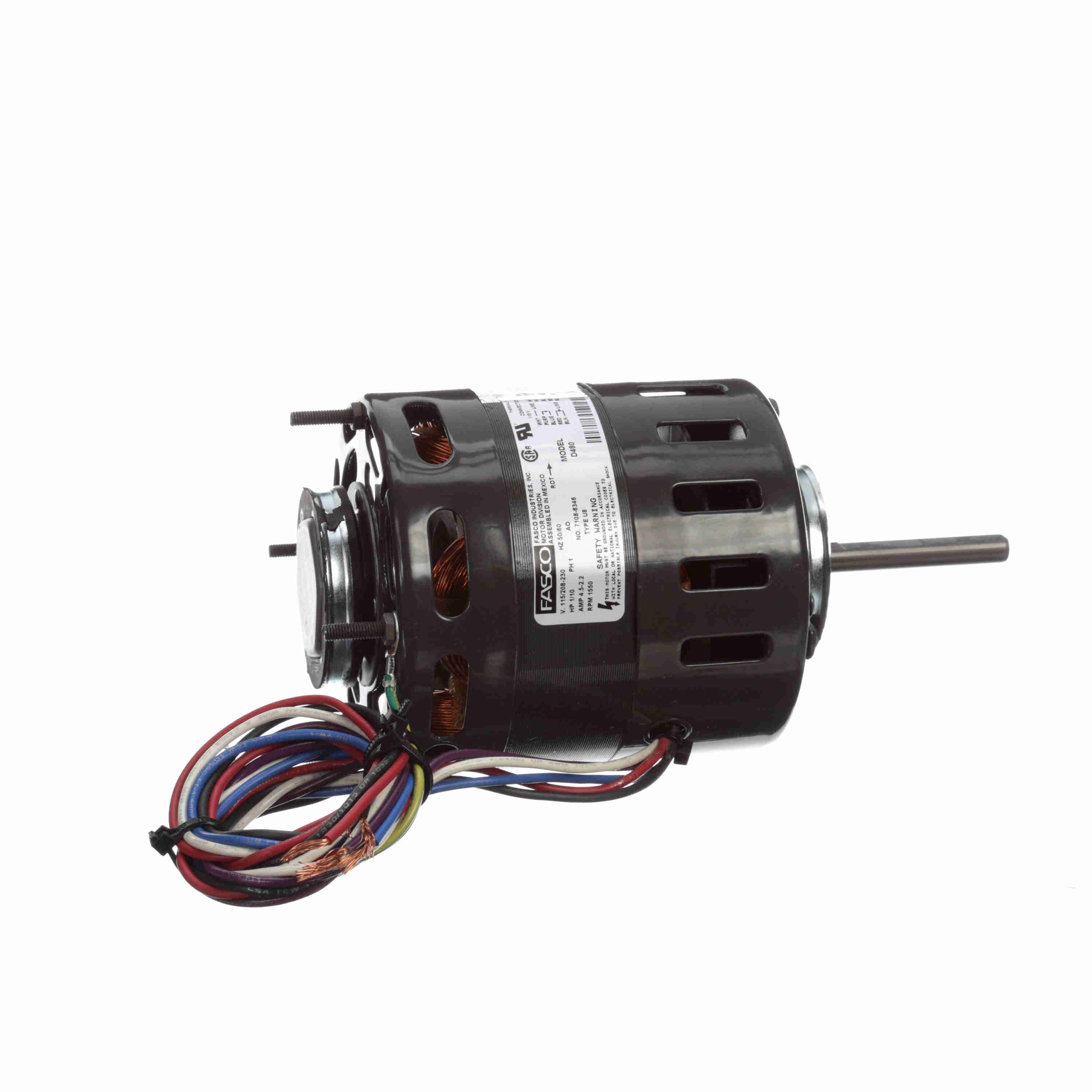

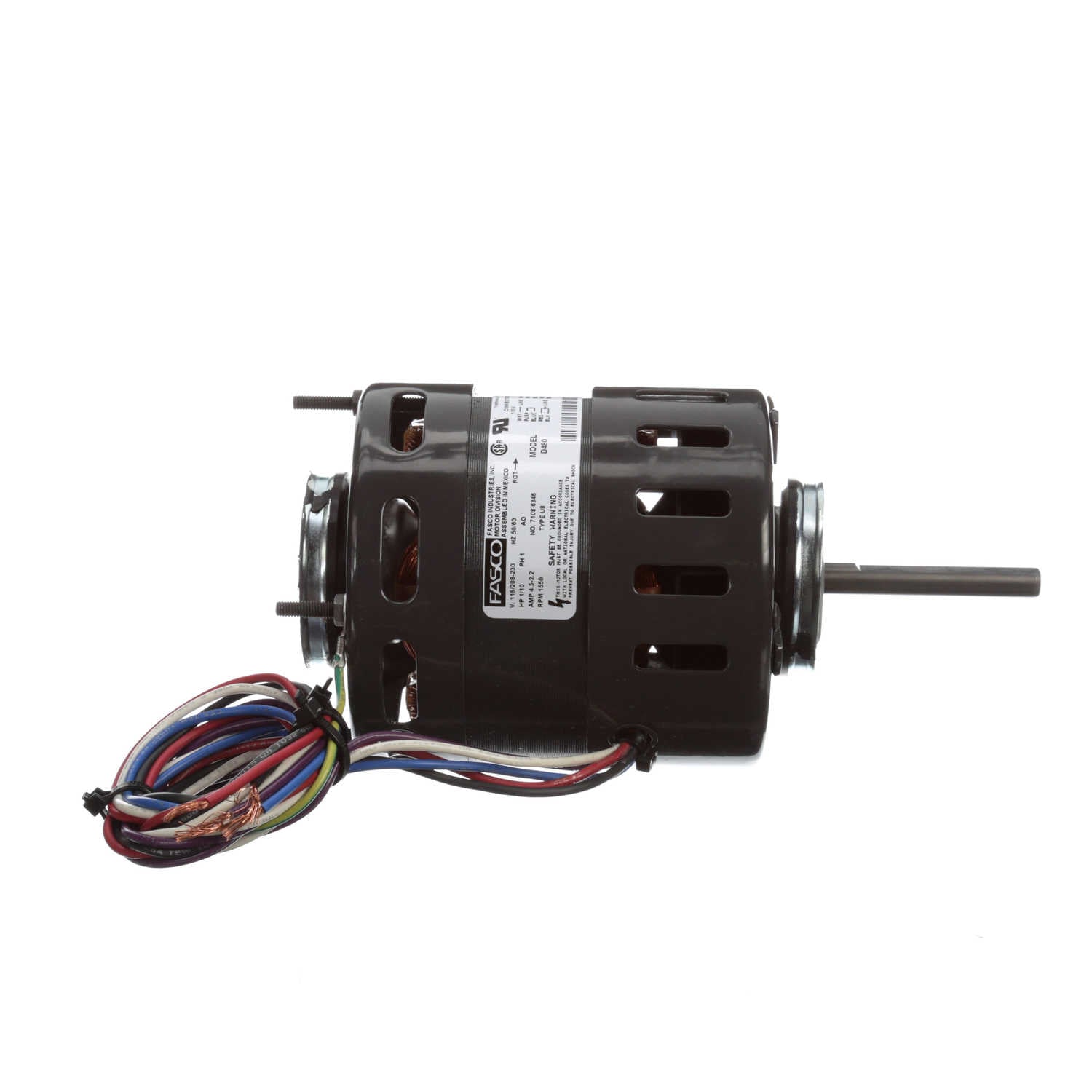

Fasco D480 1/10 HP 1550 RPM 115/208-230 Volts Refrigeration Fan Motor

The Fasco D480 is a reliable refrigeration fan motor designed for efficient operation. With a 1/10 HP rating and operating at 1550 RPM, this motor is built to maintain optimal performance in demanding environments. It offers versatile voltage compatibility, working with 115/208-230 Volts, and features a thermally protected design for enhanced safety. This motor is typically ready to ship within 1 business day and comes with a 1-year manufacturer's warranty, ensuring peace of mind for your refrigeration needs.

Technical Details

The Fasco D480 is a single-speed, 1/10 HP refrigeration fan motor. It operates on 115/208-230 Volts and 60 Hz frequency, drawing between 4.5 and 2.2 Amps. The motor features an Open Air Over enclosure and runs at 1550 RPM. It is designed for clockwise rotation when viewed from the shaft end and utilizes a resilient ring mounting type with extended studs. Key dimensions include a 4.4-inch frame diameter, a 3/8-inch shaft diameter, and a 3.15-inch shaft extension. The motor is equipped with sleeve bearings on both the drive end (DE) and opposite drive end (ODE). It has a shaded pole electrical type, is rated for Air Over duty, and has a service factor of 1. The overload protector is thermally activated, and it has an Insulation Class A with a maximum ambient temperature rating of 40°C. Certifications include UL Recognized, CSA approved, and CE marked.
