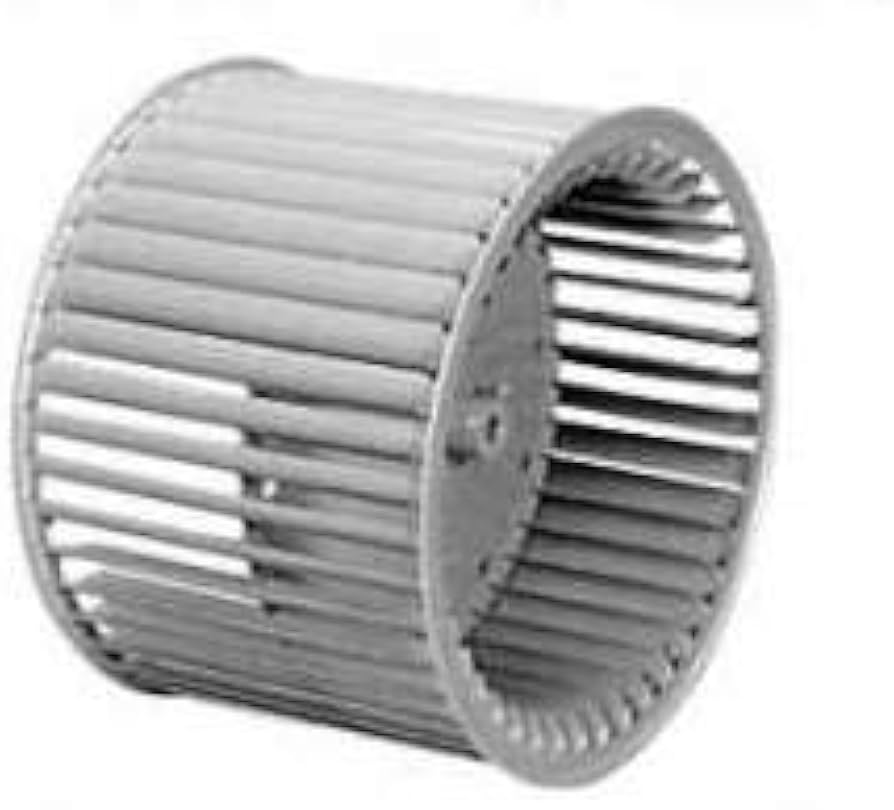

The Lau 013316-02 is a 10-10 direct drive blower wheel designed for high-performance HVAC ventilation systems. This double inlet squirrel cage blower features a 10.62-inch diameter, 10.68-inch width, and a 0.5-inch bore, engineered to maintain consistent airflow at 1750 RPM with clockwise rotation. It is a reliable replacement component for maintaining optimal air distribution in residential and commercial furnaces.
LAU 01331602 Squirrel Cage Blower Wheel, 10.62"x10.68", 1/2" Bore, CW, 1750 RPM
Specifications
| Diameter | 10-5/8 in |
|---|---|
| Diameter | 10.62 in |
| Type | Blower |
| Width | 10.68 in |
| Bore | 1/2 in |
| Rotation | CW |
| Rotation | CW |
| Bore | 1/2 in |
| Inlet | Double inlet |
| RPM | 1750 RPM |
| Hub type | Fi × ed |
| Drive type | Direct drive |
| Max RPM | 1750 RPM |
| Material | Steel |
