The Little Giant 504186 (4E34NT) is a 1/12 HP oil-filled submersible pump designed for efficient liquid transfer. With a 710 GPH flow rate at 1 foot and a shut-off head of 23.1 feet, this pump combines an epoxy-coated die-cast aluminum housing, a screened inlet and a 1/2" MNPT discharge, making it a durable choice for HVAC, fountain and machine tool coolant applications. Its thermally protected 115V motor ensures reliable performance in systems where liquid must be transferred or recirculated.

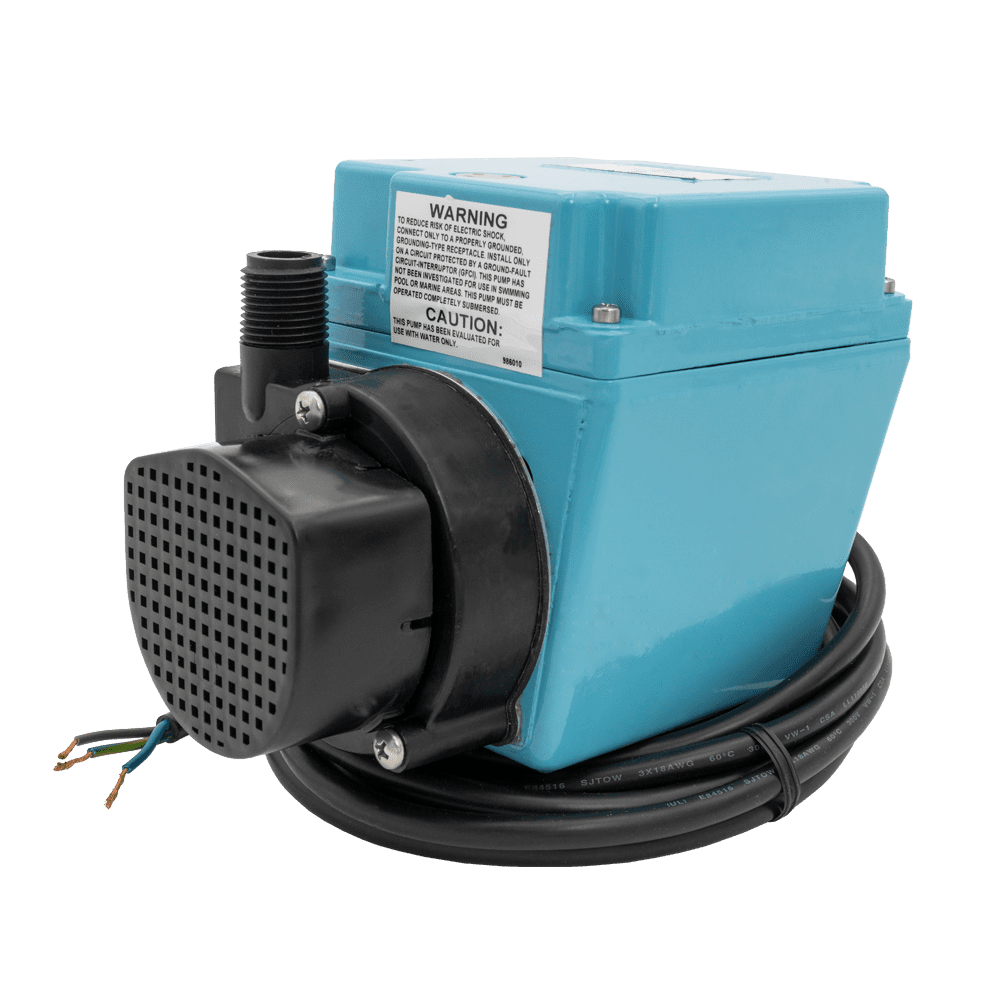

LITTLE GIANT 4E34NT Submersible Pump, 1/12 HP, 115V, 710 GPH, 23.1' Head, 1/2" MNPT
Specifications
| Horsepower | 1/12 HP |
|---|---|
| Pump type | Submersible |
| Voltage | 115 V |
| Horsepower | 1/12 HP |
| Discharge size | 1/2" MNPT in |
| Voltage | 115 V |
| Max flow | 11.83 GPM |
| Phase | Single |
| Max head (lift) | 23.1 ft |
| Max flow | 11.83 GPM |
| Solids handling | None in |
| Max head (lift) | 23.1 ft |
| Switch type | Manual |
| Cord length | 10 ft |
| Outlet (discharge) | 1/2 in |
| Housing material | Epo × y-coated cast iron |
| Max liquid temp | 120 °F |
| Housing material | Aluminum |
| Connection type | NPT |
| Self-priming | false |
