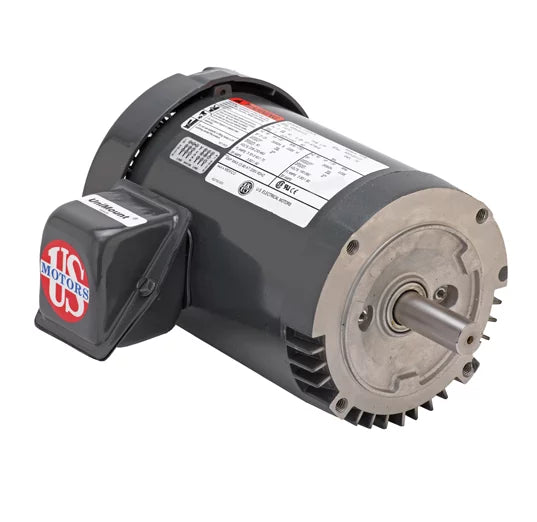

The US Motors 1500W Commercial Belted Fan & Blower is a 2 HP motor operating at 1725 RPM with a 1500 Watt rating and a 575V voltage. It is a 3-phase motor with an Open Dripproof (ODP) enclosure and a 56 NEMA Frame. Key features include an automatic reset thermal overload protector, Class B insulation, and a single speed. The motor has a frequency of 56 Hertz and an amperage of 2.7A. Its physical dimensions are 12.20-in x 6.50-in x 6.75-in and it weighs 34.00-lb. It is rated for continuous duty and has double contact sealed ball bearings. The motor is also ambient rated for 104°F (40°C).
Us Electric 2hp 575v 3ph 60 1725rpm ODP Fr56hz 2.7a 34lbs ***non Compatible Avec Les Vfds (drives)***
Specifications
| Voltage | 575 V |
|---|---|
| Horsepower | 2 HP |
| RPM | 1725 RPM |
| Phase | 3 Ph |
| Frame | 56HZ |
| Frequency | 60 Hz |
| Shaft Diameter | 1/4 |
