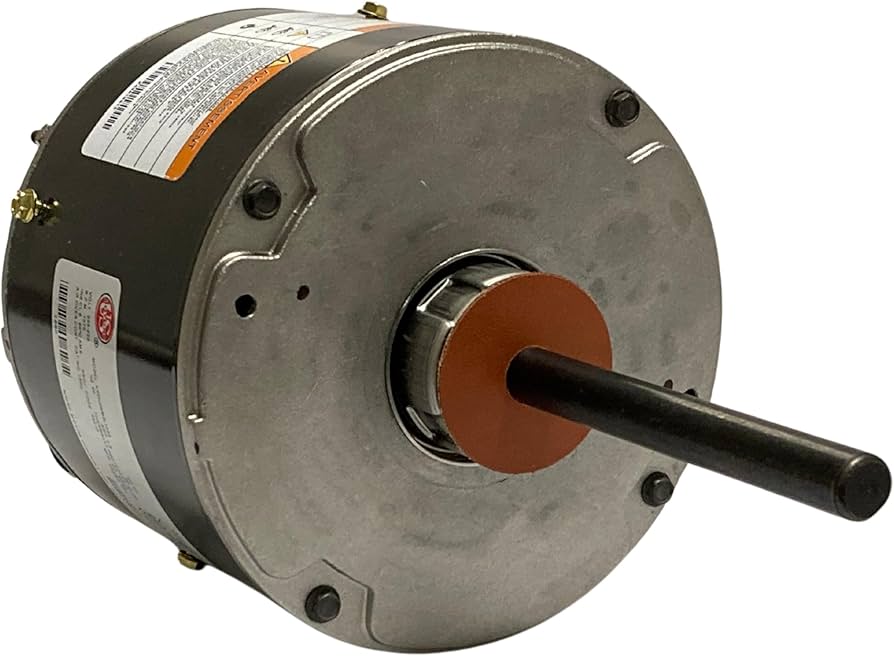

The US MOTORS 1177 is a high-performance 1/2 HP commercial condenser fan motor designed for reliability in demanding HVAC environments. This 575V, 1075 RPM open-drip-proof motor features automatic thermal overload protection and a sturdy band mount with a drip shield for enhanced longevity. It is engineered for consistent operation in commercial cooling systems where 48 frame compatibility is required.
1/2 HP - Open - 1075 RPM 575vac Frame 48 7.5mfd Commercial Condenser Fan 5.6" Dia. Open Drip Proof Automatic Thermal Overload Protector Band Mount With Drip Shield
Specifications
| Voltage | 575 V |
|---|---|
| Horsepower | 1/2 HP |
| RPM | 1075 RPM |
| Phase | 1 Ph |
| Frame | 48Y |
| Frequency | 60 Hz |
| Shaft Diameter | 1/2 |
