The US Motors 1296 is a 0.33 HP condenser fan motor operating at 825 RPM. It features a TEAO enclosure, a 575V primary voltage rating, and a 1-phase electrical configuration. The motor utilizes a permanent split capacitor design and has a frame size of 48Y. It includes ball bearings at both the shaft end and opposite end, and has a thermal protection with automatic reset. The insulation class is B, and it operates at 60 Hz with a full load amperage of 1.1.

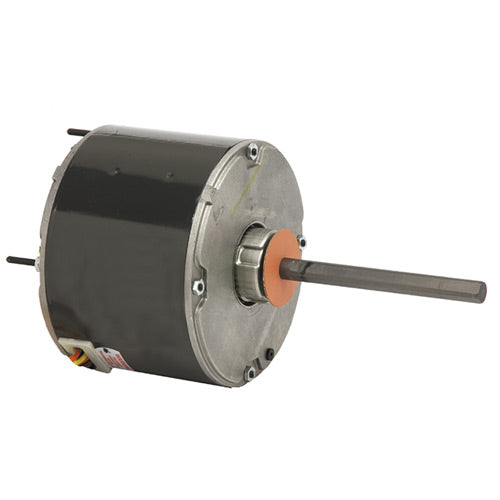

Us Electric Cond Fan 1/3hp 825rpm 575v 1ph Fr48y Teao Bb Cwse Rev. 1.1a 7.5mfd 370vac 17lbs
Specifications
| Voltage | 575 V |
|---|---|
| Horsepower | 1/3 HP |
| RPM | 825 RPM |
| Phase | 1 Ph |
| Frame | 449 |
| Frequency | 60 Hz |
| Shaft Diameter | 1/2 |
