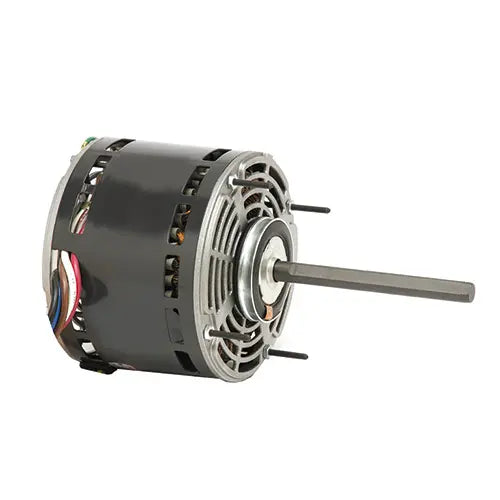

The US Motors 1699 is a 1 HP, 1-phase, 3-speed direct drive fan and blower motor operating at 1625 RPM. It is rated for 115V and 60 Hz input frequency. The motor features a permanent split capacitor, Class B insulation, and an automatic reset thermal overload protector. It has a 48Y frame size and includes 24-inch leads and 2.5-inch diameter hub rings. The motor is designed for continuous duty, air-over applications and has an all-angle thrust system for its bearings. It is CSA US, cUL/UL Listed.
US MOTORS 1699 OAO Motor, 1HP, 1625RPM, 115V, 1Ph, Frame 48Y, 1/2" Shaft
Specifications
| Voltage | 115 V |
|---|---|
| Horsepower | 1 HP |
| RPM | 1625 RPM |
| Phase | 1 Ph |
| Frame | 48Y |
| Frequency | 60 Hz |
| Shaft Diameter | 1/2 |
