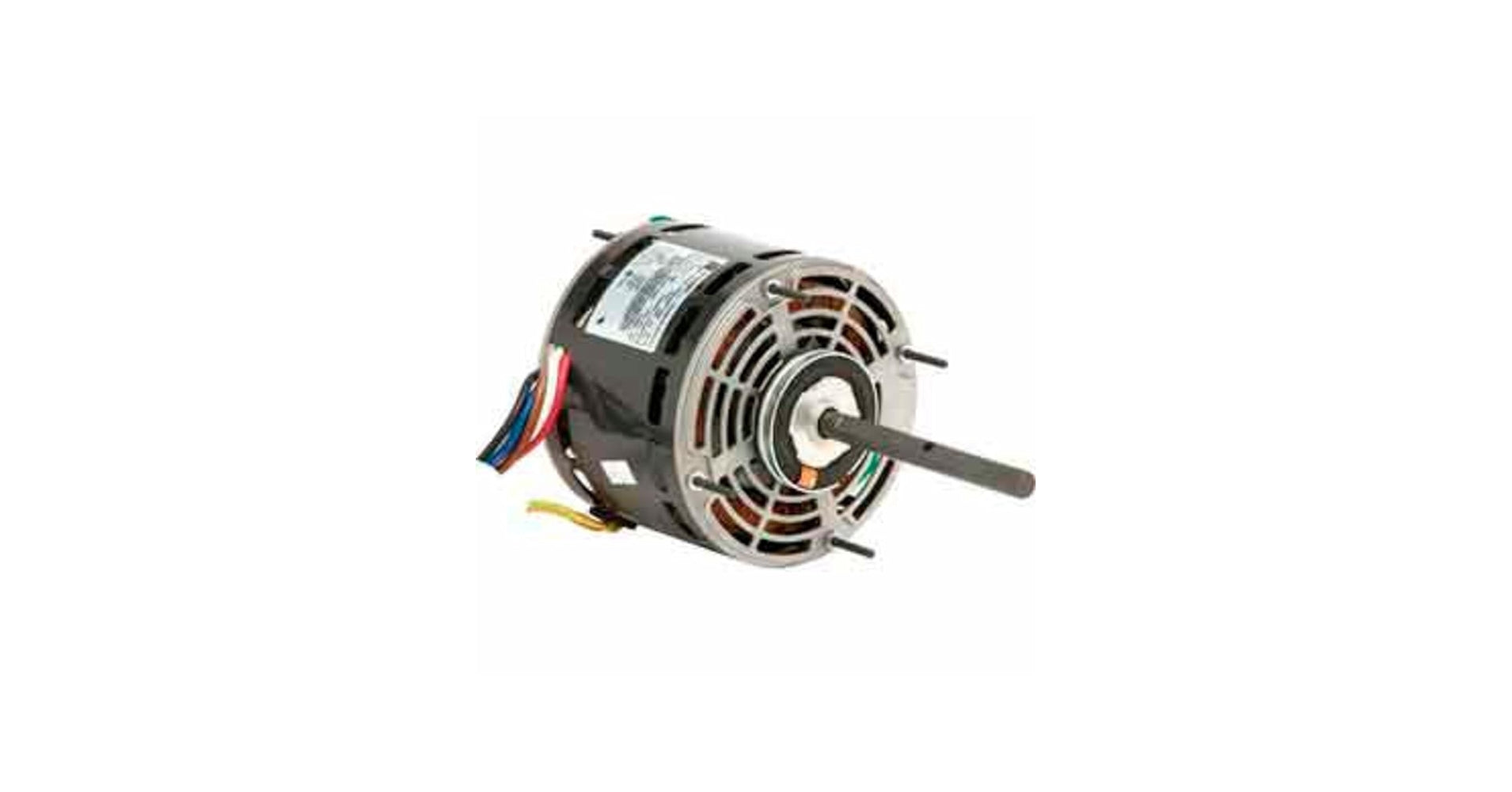

The US Motors 1863 is a 1/4 HP, 115V direct drive blower motor operating at 1075 RPM with 3 speeds. It draws 3.5 Amps and is a single-phase motor with reversible rotation. It requires a 7.5 MFD capacitor and features Class B insulation and 24" leads. The motor is designed for continuous duty and air-over applications.
Us Electric Dd Motor 1/4hp 1075rpm 3spd 115vac 3.5amp Fr48y Rnd Slv...(cap = 7.5mfd) 10lbs
Specifications
| Voltage | 115 V |
|---|---|
| Horsepower | 1/4 HP |
| RPM | 1075 RPM |
| Phase | 1 Ph |
| Frame | 48 |
| Frequency | 60 Hz |
| Shaft Diameter | 1/2 |
