This is a 1/3 HP, 208-230V direct drive blower motor with 1075 RPM and 3 speeds. It operates on a 1-phase system and requires a 7.5 MFD/370VAC capacitor. The motor has an amperage of 1.9A and reversible rotation. It features Ball bearings, an OAO (Open Air Over) enclosure type, and Frame 48Y. The insulation class is B and it operates at 60 Hz.

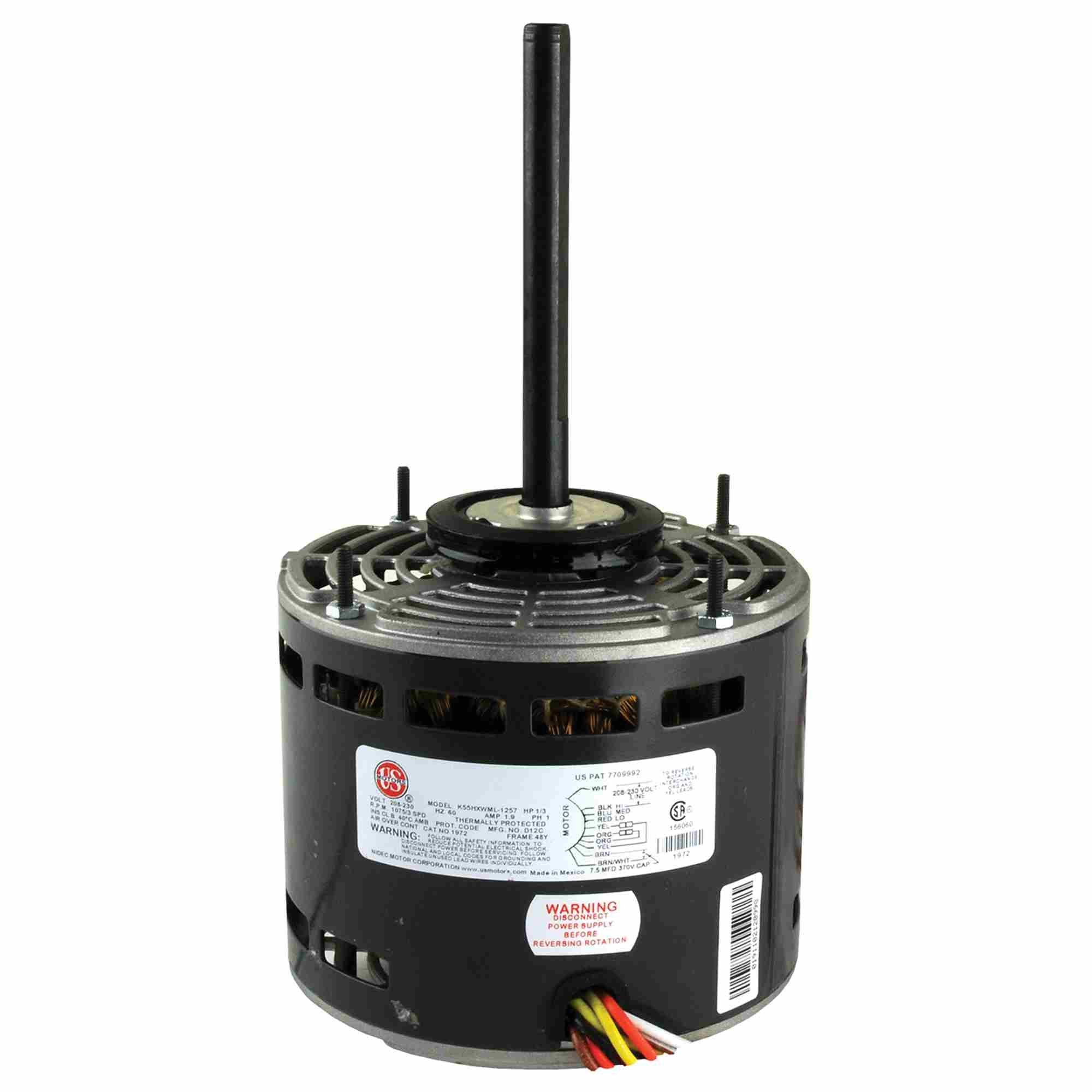

Us Electric Dd Blower Motor 1/3hp 1075rpm 3spd 208-230vac Fr48y Rm Rnd Slv...(cap = 7.5mfd) 11lbs
Specifications
| Voltage | 208-230 V |
|---|---|
| Horsepower | 1/3 HP |
| RPM | 1075 RPM |
| Phase | 1 Ph |
| Frame | 48Y |
| Frequency | 60 Hz |
| Shaft Diameter | 1/2 |
