The US Motors 2250 is a 1/4 HP condenser fan motor with a speed of 1075 RPM. It operates on a single phase, with a voltage rating of 208-230V and draws 1.7 amps. The motor features a Totally Enclosed Air Over (TEAO) enclosure and a Permanent Split Capacitor (PSC) design. It has automatic thermal protection and a 5.0 inch diameter with a Frame 42. The motor is rated for a maximum ambient temperature of 60° C.

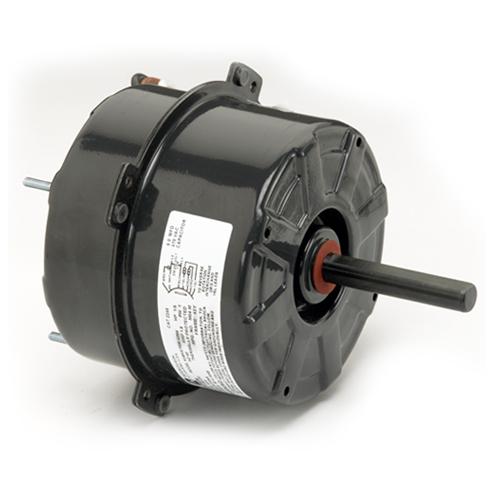

US MOTORS 2250 TEAO Condenser Fan Motor, 1/4HP, 208-230V, 1075RPM, 42 Frame, 1/2" Shaft
Specifications
| Voltage | 208-230 V |
|---|---|
| Horsepower | 1/4 HP |
| RPM | 1075 RPM |
| Phase | 1 Ph |
| Frame | 42 |
| Frequency | 60 Hz |
| Shaft Diameter | 1/2 |
| Motor type | PSC |
| Enclosure | TEAO |
| Rotation | Reversible |
| Speeds | 1 |
| Full-load amps | 1.7 A |
| Run capacitor | 7.5 µF / 370 V µF / V |
| Bearings | Ball |
| Mounting | Stud |
| Motor diameter | 5 in |
| Shaft length | 2.7 in |
| Thermal protection | Auto |
