The US Motors 4933 is a 1 HP, 3-phase, 1-speed motor with a 575V rating and 60 Hz frequency. It operates at 1140 RPM and is built with a 56 frame size. The motor features an Open Air Over (OAO) enclosure and is suitable for 60°C ambient temperatures. It has a service factor of 1 and includes automatic thermal protection. Key technical specifications include 0.8 kW, 6 poles, a stator diameter of 6.3 inches, and a stack length of 3 inches. Bearings are double-sealed ball bearings, and it has Class B insulation. The motor supports reversible rotation and has a belly band mount. Its full load amps are 1.6A.

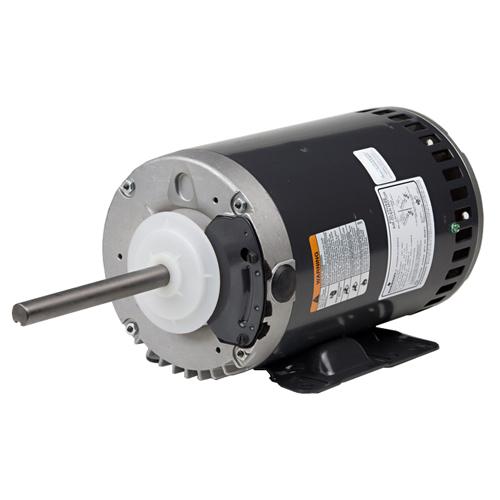

US MOTORS 4933 TEFC Motor, 1HP, 575V, 3PH, 60Hz, 1140RPM, 56 Frame, 5/8" Shaft
Specifications
| Voltage | 575 V |
|---|---|
| Horsepower | 1 HP |
| RPM | 1140 RPM |
| Phase | 3 Ph |
| Frame | 56 |
| Frequency | 60 Hz |
| Shaft Diameter | 5/8 |
