A 3/4 HP, 1725 RPM, single-phase Leeson General Purpose Motor with a 56C frame and TEFC enclosure. It operates on 115/208-230V and has a service factor of 1.15. The motor features Class B insulation and is designed for continuous duty.

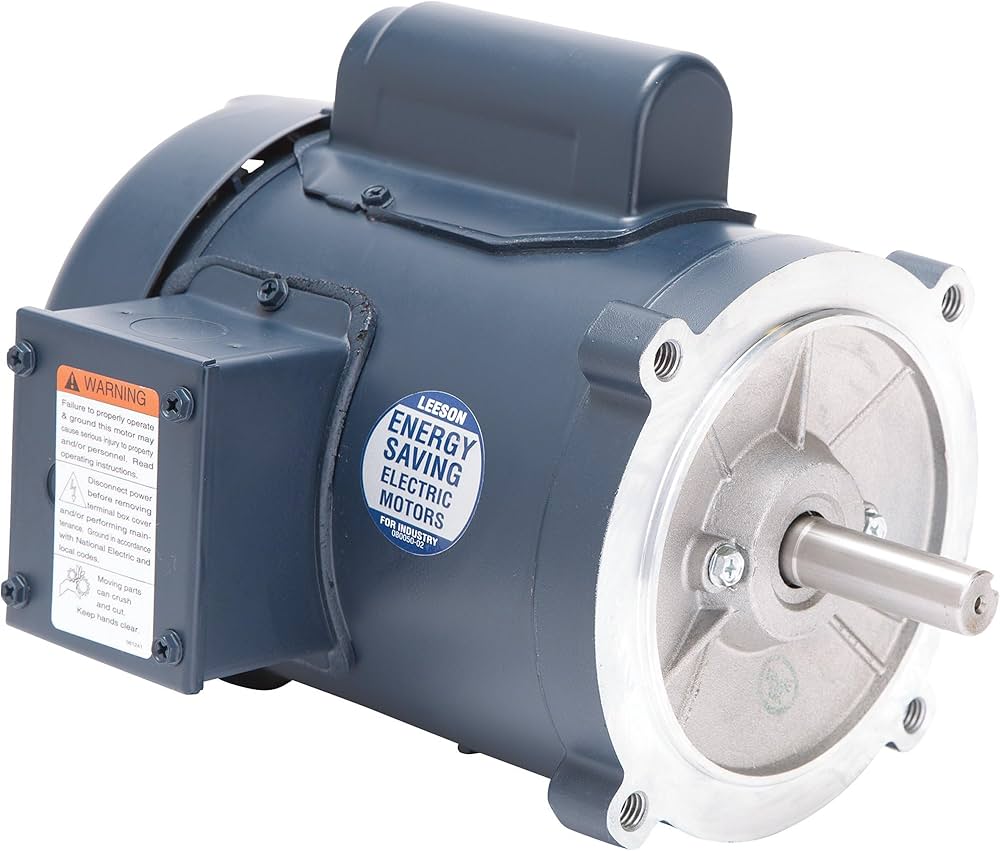

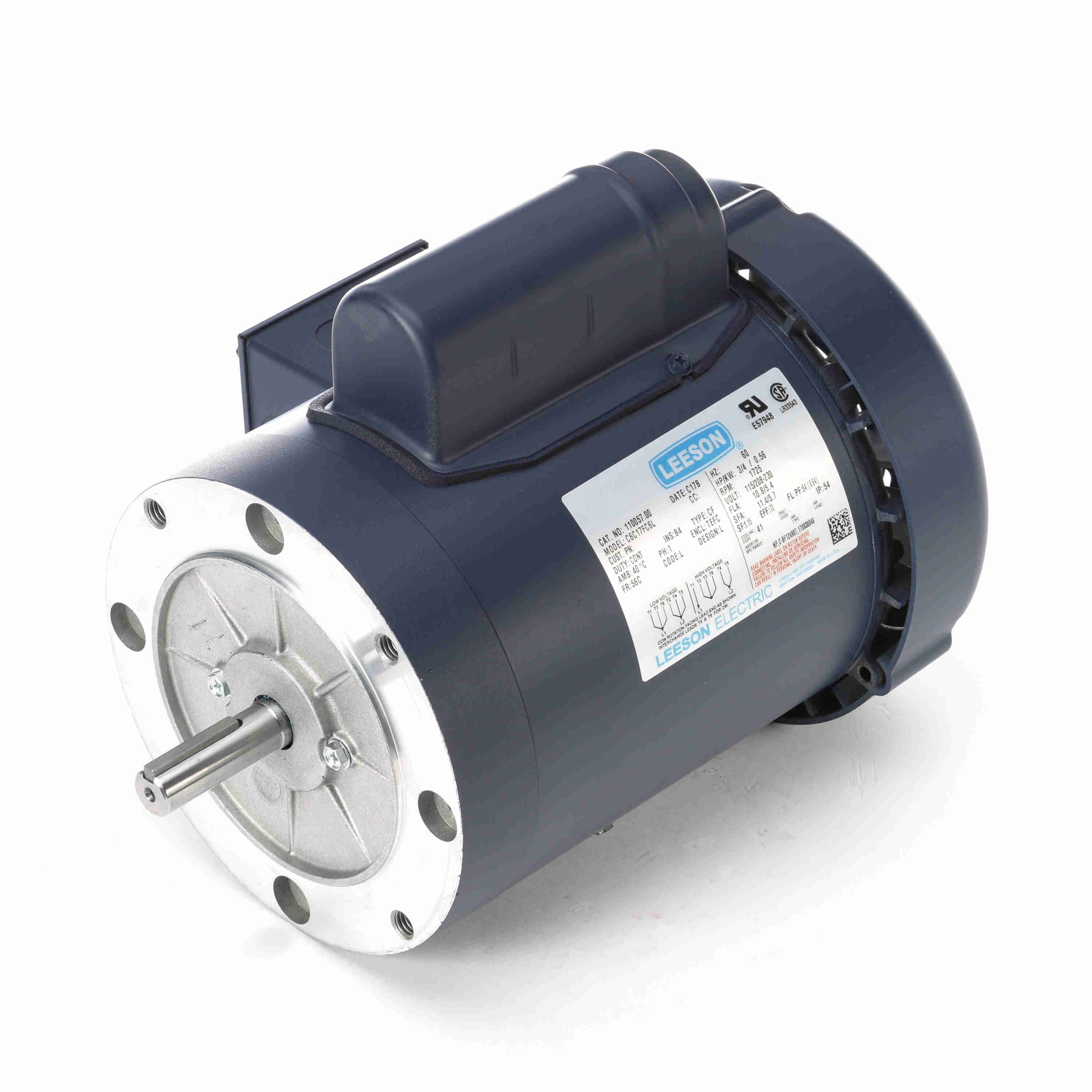

LEESON 110057 TEFC Motor, 3/4HP, 1725RPM, 115/208-230V, 1PH, 56C Frame, 5/8" Shaft
Specifications
| Voltage | 115/208-230 V |
|---|---|
| Horsepower | 3/4 HP |
| RPM | 1725 RPM |
| Phase | 1 Ph |
| Frame | 56C |
| Frequency | 60 Hz |
| Shaft Diameter | 5/8 |
| Motor type | Capacitor start |
| Enclosure | TEFC |
| Rotation | Reversible |
| Speeds | 1 |
| Full-load amps | 10.8 A |
| Bearings | Ball |
| Mounting | C-face |
| Shaft length | 1.88 in |
| Service factor | 1.15 |
| Thermal protection | None |
| Max ambient | 40 °C |
| Efficiency | 70 % |
