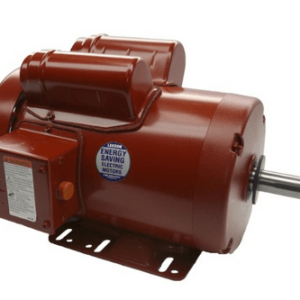

LEESON 110161 ODP Motor, 1-1/2HP, 3450 RPM, 115/230V, 1Ph, 56 Frame, 5/8" Shaft
LEESON 110161 ODP Motor, 1-1/2HP, 3450 RPM, 115/230V, 1Ph, 56 Frame, 5/8" Shaft

LEESON 110161 ODP Motor, 1-1/2HP, 3450 RPM, 115/230V, 1Ph, 56 Frame, 5/8" Shaft

Trade-account pricing & availability.

Open a commercial account, or contact us, for pricing, availability, and pickup at Laval, Ville Saint-Laurent and Longueuil.

Availability by branch

  • Laval In stock
  • Longueuil Not available
  • Saint-Laurent Not available
Open an account Contact us

This Leeson single-phase motor is designed for demanding applications like air compressors, pumps, fans, and blowers, requiring high breakdown torque and robust mechanical construction. Featuring pre-lubricated, double-shielded ball bearings, it's built to handle varied belt loads and tensions. The ODP (Open Dripproof) enclosure is suitable for environments without excessive water or dirt exposure. Enjoy dual rotation capability and copper windings for reliable performance.

Technical Details

A 1.5 HP single-phase Leeson motor with a 3450 RPM output, operating on 115/230V. It features a NEMA 56 frame, ODP enclosure, and is designed for continuous duty. Key specifications include 1.1 kW output, 60 Hz frequency, and Class B insulation.

Technical Specifications

Voltage 115
Horsepower 1 1/2
RPM 3600
Phase 1
Frame Size 56
Enclosure ODP
Frequency 60
Watts 1.1K
Shaft Diameter 5/8
Mounting RIGID
Rotation Direction SELECTIVE CW
Certifications CSA
Primary Application Compressor Duty
