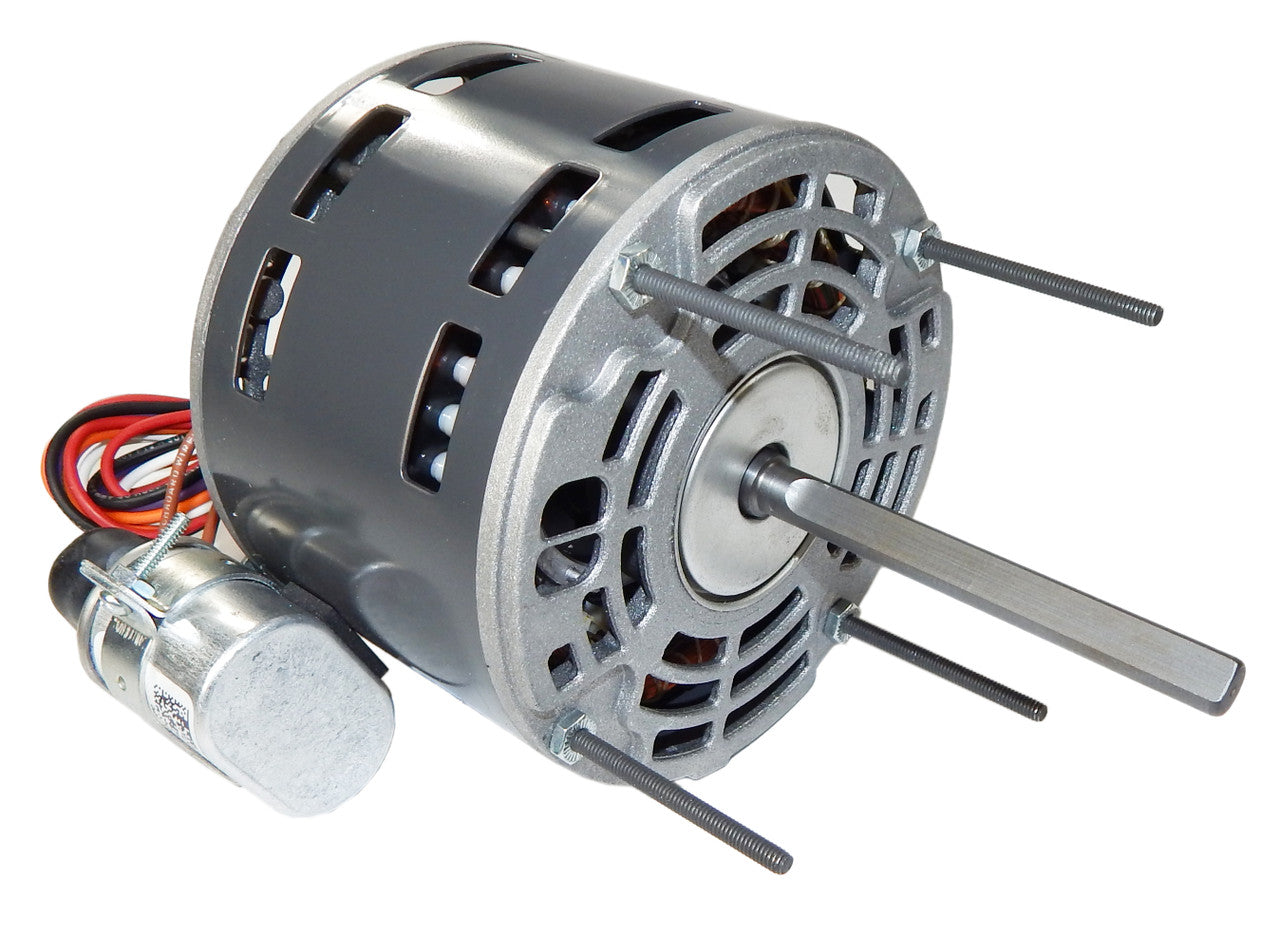

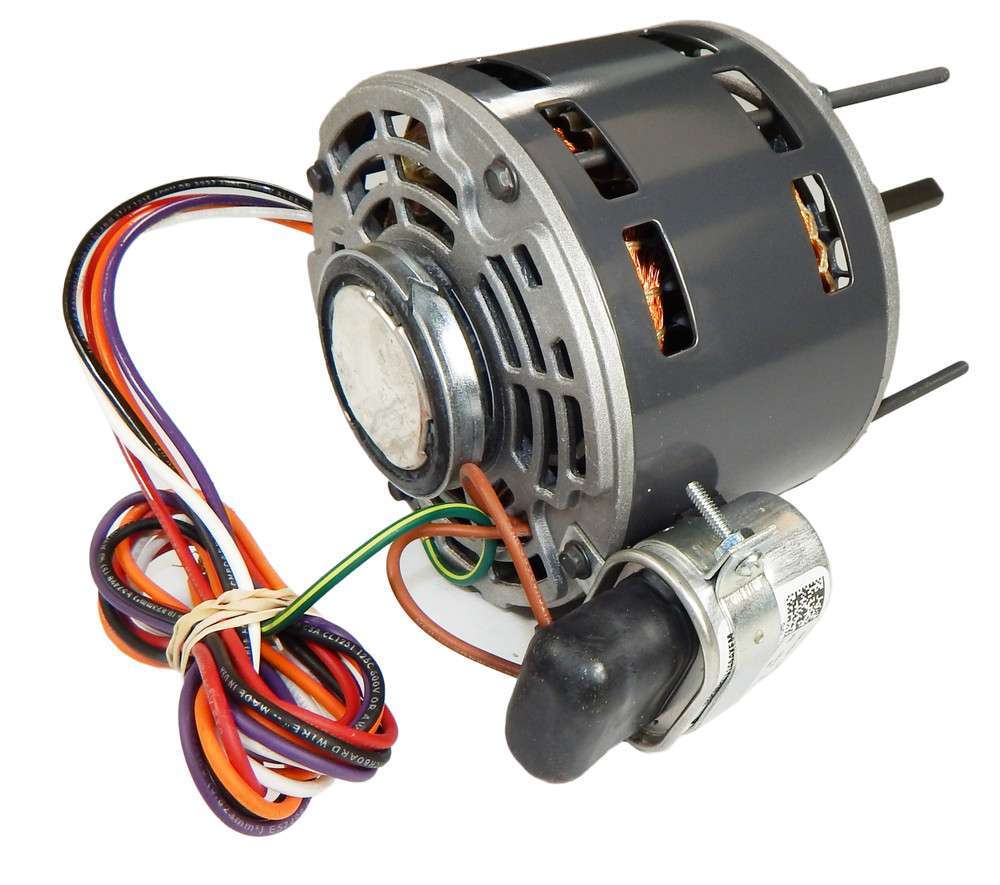

US MOTORS 1471P ODP Motor, 1/10 HP, 115/208-230V, 1050 RPM, 1 Ph, 60Hz, 5" Dia

US MOTORS 1471P ODP Motor, 1/10 HP, 115/208-230V, 1050 RPM, 1 Ph, 60Hz, 5" Dia

Trade-account pricing & availability.

Open a commercial account, or contact us, for pricing, availability, and pickup at Laval, Ville Saint-Laurent and Longueuil.

Availability by branch

  • Laval Not available
  • Longueuil Not available
  • Saint-Laurent Not available
Open an account Contact us
This is a 1/10 HP, 1050 RPM single-speed motor from US Motors. It operates on 115/208-230 Volts and features a 21/29 frame size. The motor has Class B insulation, an Open Dripproof, Air Over enclosure, and a hub mount bracket with a 2-1/4" diameter. It is designed as a replacement for GE motors HG3253, HG3254, HG3275, HG3263, and HG3264.

Specifications

Voltage 115/208-230 V
Horsepower 1/10 HP
RPM 1050 RPM
Phase 1 Ph
Frame 42
Frequency 60 Hz
Shaft Diameter 3/8
Motor type PSC
Enclosure OAO
Rotation CW shaft end / CCW lead end
Speeds 1
Bearings Sleeve
Mounting Bracket
Motor diameter 5 in
Shaft length 3.3 in
Service factor 1
Thermal protection Auto
Max ambient 40 °C
