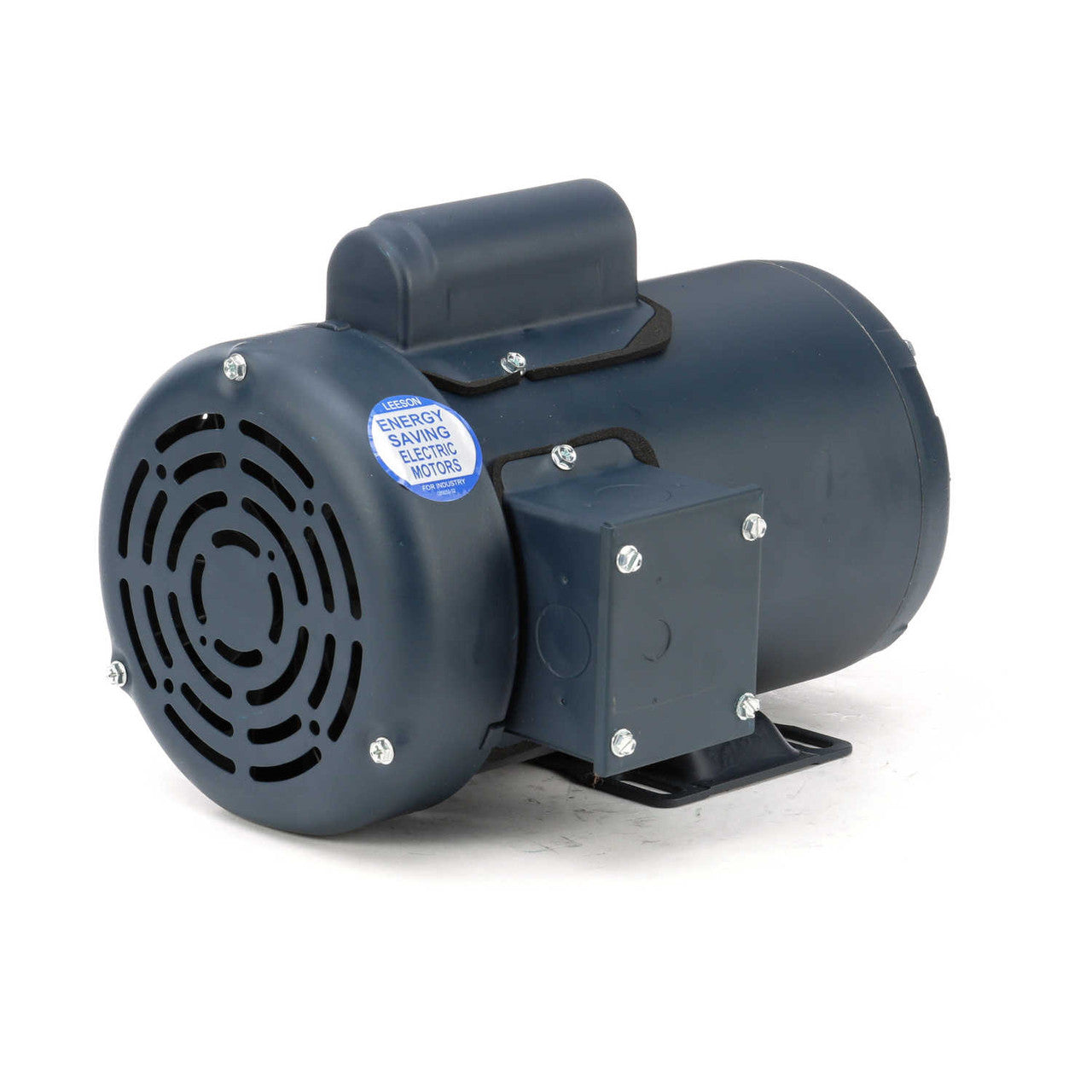

LEESON 110352 TEFC Motor, 2HP, 1PH, 115/208-230V, 3450 RPM, 56H, 5/8" Shaft, 60Hz

LEESON 110352 TEFC Motor, 2HP, 1PH, 115/208-230V, 3450 RPM, 56H, 5/8" Shaft, 60Hz

Trade-account pricing & availability.

Open a commercial account, or contact us, for pricing, availability, and pickup at Laval, Ville Saint-Laurent and Longueuil.

Availability by branch

  • Laval Not available
  • Longueuil Not available
  • Saint-Laurent Not available
Open an account Contact us
A 2 HP single-phase motor with an output speed of 3450 RPM. It operates on 115/208-230V and has a frequency of 60Hz. The motor features a NEMA 56H frame with a keyed shaft measuring 5/8" diameter x 1 7/8". It has a service factor of 1.0 and no overload protection. The enclosure is TEFC (Totally Enclosed Fan Cooled) and has an IEC rating of IP43. The motor is reversible and has a rigid base mount with ball bearings and Class F insulation. The dimensions are 11 inches in height, 22 inches in width, and 11 inches in depth, with a weight of 46 lbs.

Specifications

Voltage 115/208-230 V
Horsepower 2 HP
RPM 3450 RPM
Phase 1 Ph
Frame 56H
Frequency 60 Hz
Shaft Diameter 5/8
Motor type Capacitor start
Enclosure TEFC
Rotation Reversible
Full-load amps 20 A
Bearings Ball
Mounting Rigid base
Shaft length 1.88 in
Service factor 1
Thermal protection None
Max ambient 40 °C
Efficiency 73 %
