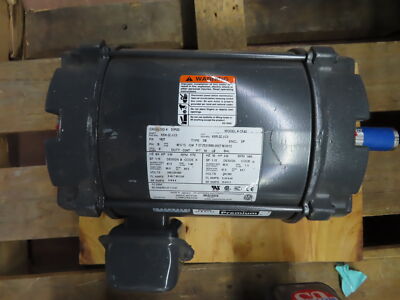

3 HP - ODP - 1770 RPM - General Purpose Motor

This US Motors 3 HP, 3-phase general purpose motor is built for reliability and efficiency. Featuring an Open Dripproof (ODP) enclosure and NEMA Premium Efficiency, it's designed for demanding applications like compressors, fans, pumps, and material handling. The motor boasts Class F insulation with a Class B rise at service factor, and is inverter compatible for variable torque applications. It includes regreasable bearings on frames 180 and up, and a service factor of 1.15 for added durability. This motor is suitable for 40°C ambient temperatures and meets NEMA Design B performance on 60 Hz sine wave power.

Technical Details

This is a 3 HP, 3-phase general purpose motor with an Open Dripproof (ODP) enclosure. It operates at 1770 RPM and has a NEMA frame of 182T. The motor supports a voltage range of 208-230/460V and features a service factor of 1.15. It has Class F insulation and is rated for 40°C ambient temperature. The NEMA nominal efficiency is 89.5%. The motor is designed for rigid base mounting and has an F1 assembly position.

Technical Specifications
