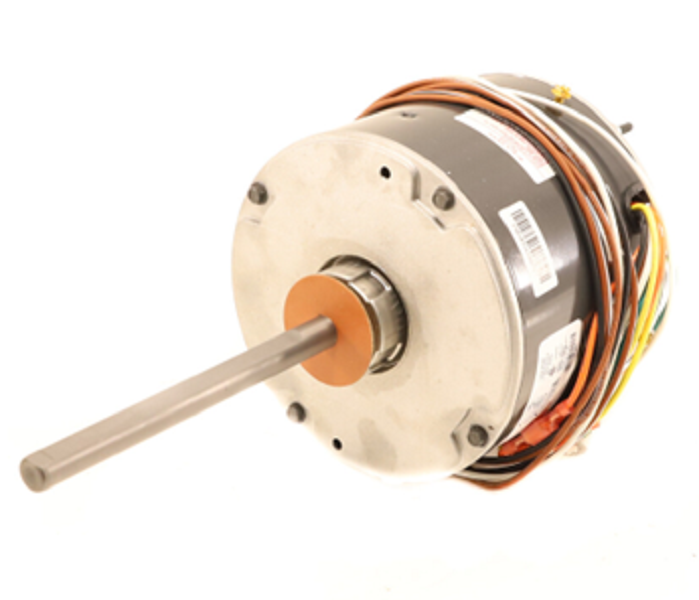

3736H U.S. Motors Perm. Split Capacitor MOJAVE Series Condenser Fan Motor (1/4 HP, 460 Volts, 1075 RPM)

This US Motors MOJAVE Series Condenser Fan Motor is designed for demanding residential and commercial applications in extreme temperature locations. Featuring a durable TEAO enclosure and Class F insulation, it ensures reliable performance. With ball bearings and an automatic reset thermal overload protector, this motor offers continuous duty operation and reversible rotation for versatile installation. It is designed for use with 370V capacitors.

Technical Details

The US Motors 3736H is a 1/4 HP condenser fan motor operating at 460 Volts and 1075 RPM. It features a TEAO (Totally Enclosed Air Over) enclosure, ball bearings with an all-angle thrust system, and Class F insulation. The motor has a 5.6" diameter and a 6" shaft. It operates at 0.8 Amps and requires a 7.5 MFD capacitor. Designed for continuous duty, it can withstand ambient temperatures up to 158F (70C).
