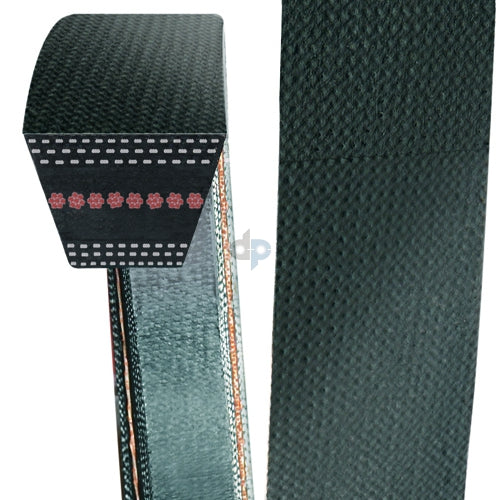

3VX1120 SUPER HC V BELT

Engineered for industrial applications where space, weight, and horsepower capacity are critical, the Gates Super HC™ Molded Notch Belt offers a cost-effective, low-maintenance drive solution. Its fiberglass tensile cord provides high strength and excellent flex life, while the neoprene body protects against grime, grease, oil, and moisture. The durable nylon tooth facing ensures a long service life, making it a maintenance-free and clean alternative for roller chain drive conversions.

Technical Details

This is a Gates Super HC™ Molded Notch Belt with a 3VX cross-section. It features a bandless construction and is black in color. The belt is constructed with an Ethylene Elastomer belt material and Polyester cord material. It is notched for increased flexibility and is suitable for industrial applications. Key specifications include an effective length of 2844 mm (111.98 inches), an outside circumference of 2845 mm (112 inches), a top width of 10 mm (0.39 inches), and a thickness of 8 mm (0.31 inches). The belt angle is 44 degrees, and it has 1 rib and 1 strand.

Technical Specifications
