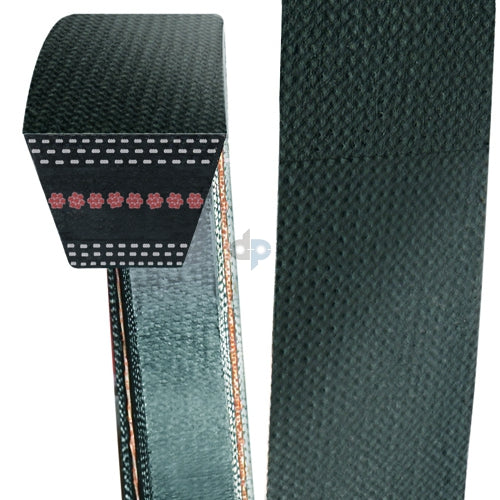

4L280R FHP BELTS GATES

Engineered for light-duty applications, these Gates FHP belts offer flexibility, durability, and resistance to contaminants. Featuring a thin profile for small-diameter sheaves and a lower cord positioning, they enhance performance on light-duty belt drives and backside idler applications. The Flex-bonded cords ensure uniform loading and wear, while the Flex-Weave oil and heat resistant cover protects the belt core. Ideal for auxiliary automotive applications, power tools, domestic appliances, and FHP motors.

Technical Details

This is a Gates 4L280R FHP belt with a 4L cross section. It has an effective length of 965 mm and an outside circumference of 985 mm. The belt is notched, has a single strand, a top width of 10 mm, and an angle of 36 degrees. Its thickness is 8 mm. The construction is banded, and the material consists of SBR belt material with Polyester cord material. The belt is black in color and weighs 0.2 lbs.
