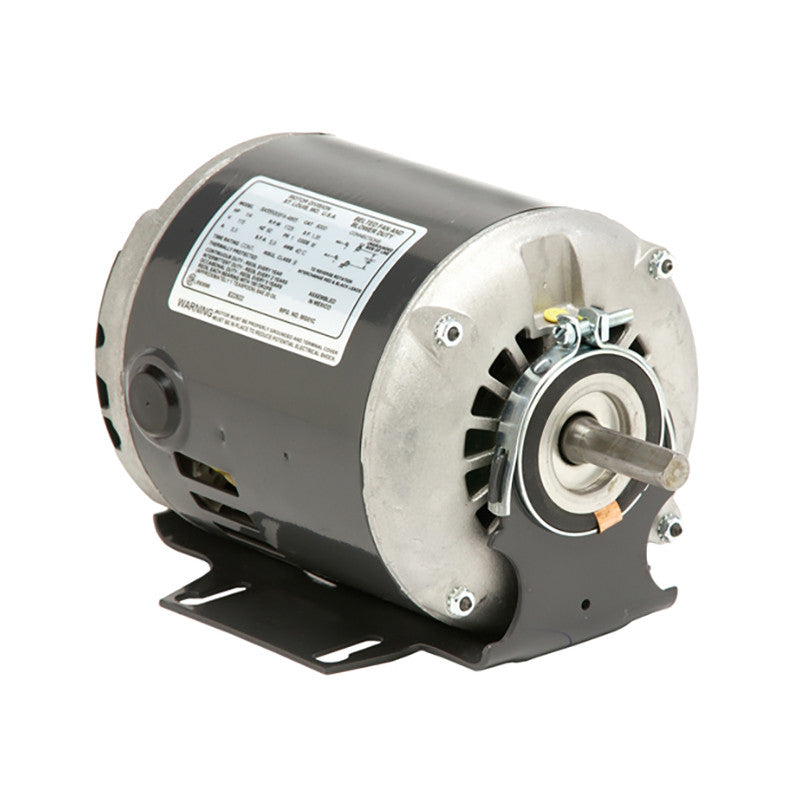

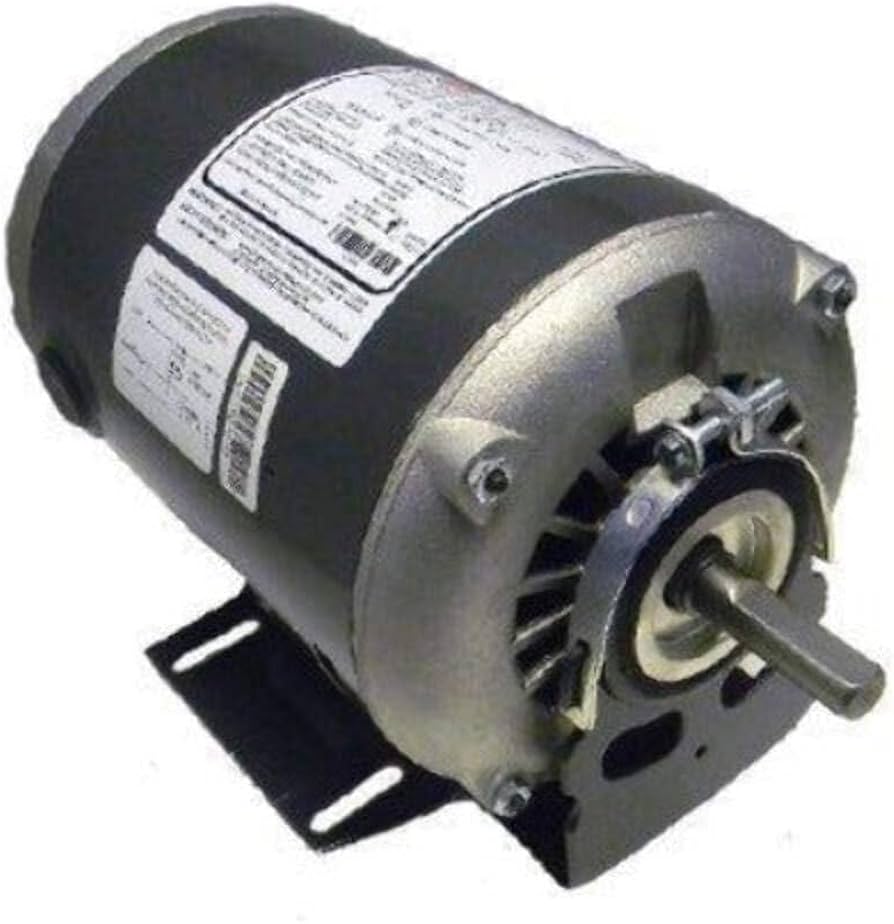

5794C U.S. Motors Split Phase Belted Fan and Blower Motor (1/2 HP, 115 Volts, 1725/1140 RPM/Spds.)

This U.S. Motors Split Phase Belted Fan and Blower Motor is designed to meet manufacturer's requirements for belted fans and blowers. It features a resilient base, Class B insulation, a threaded conduit hole, and reversible rotation for versatile application. The motor also includes an automatic reset thermal overload protector for safety and durability. With two speed settings, this motor offers flexibility for various operational needs.

Technical Details

This U.S. Motors 5794C is a 1/2 HP, 115 Volt split phase belted fan and blower motor with two speeds, offering 1725 RPM and 1140 RPM. It operates on 60 Hz and features a 56Z frame. The motor is designed with an open drip-proof enclosure and has a reversible rotation. Key specifications include 8.7 Amps, a service factor of 1, and Class B insulation. The shaft length is 1.5 inches and Shaft U is 0.5 inches. The motor has sleeve bearings and automatic thermal overload protection.
