A.O. SMITH 5FE1036S TEAO Motor 1/3HP 575V 1PH 48 Frame 1100RPM 1/2" Shaft
A.O. SMITH 5FE1036S TEAO Motor 1/3HP 575V 1PH 48 Frame 1100RPM 1/2" Shaft

A.O. SMITH 5FE1036S TEAO Motor 1/3HP 575V 1PH 48 Frame 1100RPM 1/2" Shaft

Trade-account pricing & availability.

Open a commercial account, or contact us, for pricing, availability, and pickup at Laval, Ville Saint-Laurent and Longueuil.

Availability by branch

  • Laval In stock
  • Longueuil Not available
  • Saint-Laurent In stock
Open an account Contact us

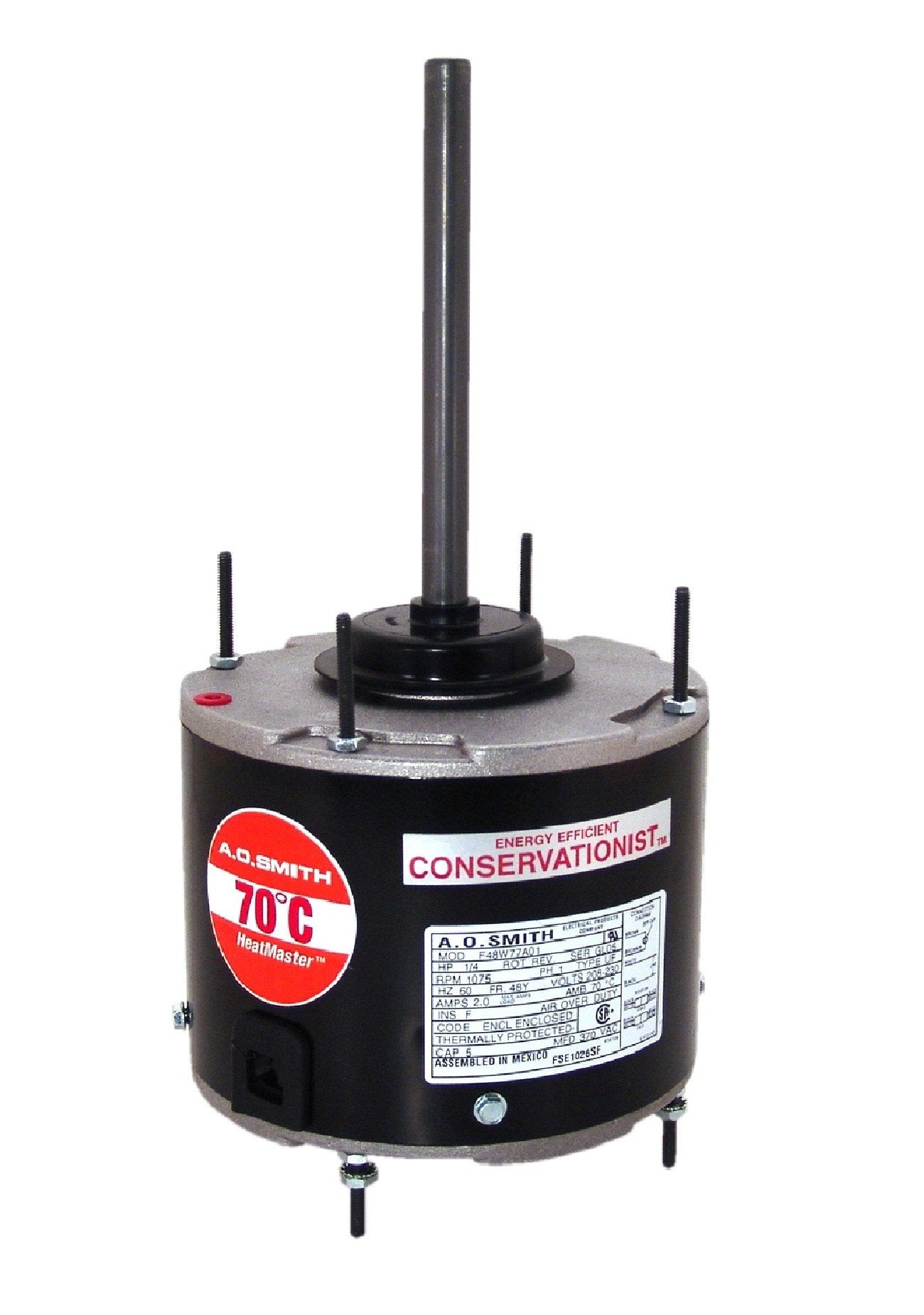

The AO Smith 5FE1036S is a 1/3 horsepower, 1-speed condenser fan motor operating at 1075 RPM. It requires a 575V power supply and is a single-phase (1PH) motor. The motor features Totally Enclosed Non-Ventilated (TENV) construction and ball bearings. It is built on a Frame 48Y. The motor has a listed amperage of 0.8A. Dimensions are provided in CM (41.9100 CM length, 19.0500 CM width, 19.0500 CM height) and weight is in KG (8.3000 KG).

Specifications

Voltage 575 V
Horsepower 1/3 HP
RPM 1100 RPM
Phase 1 Ph
Frame 48
Frequency 60 Hz
Shaft Diameter 1/2
