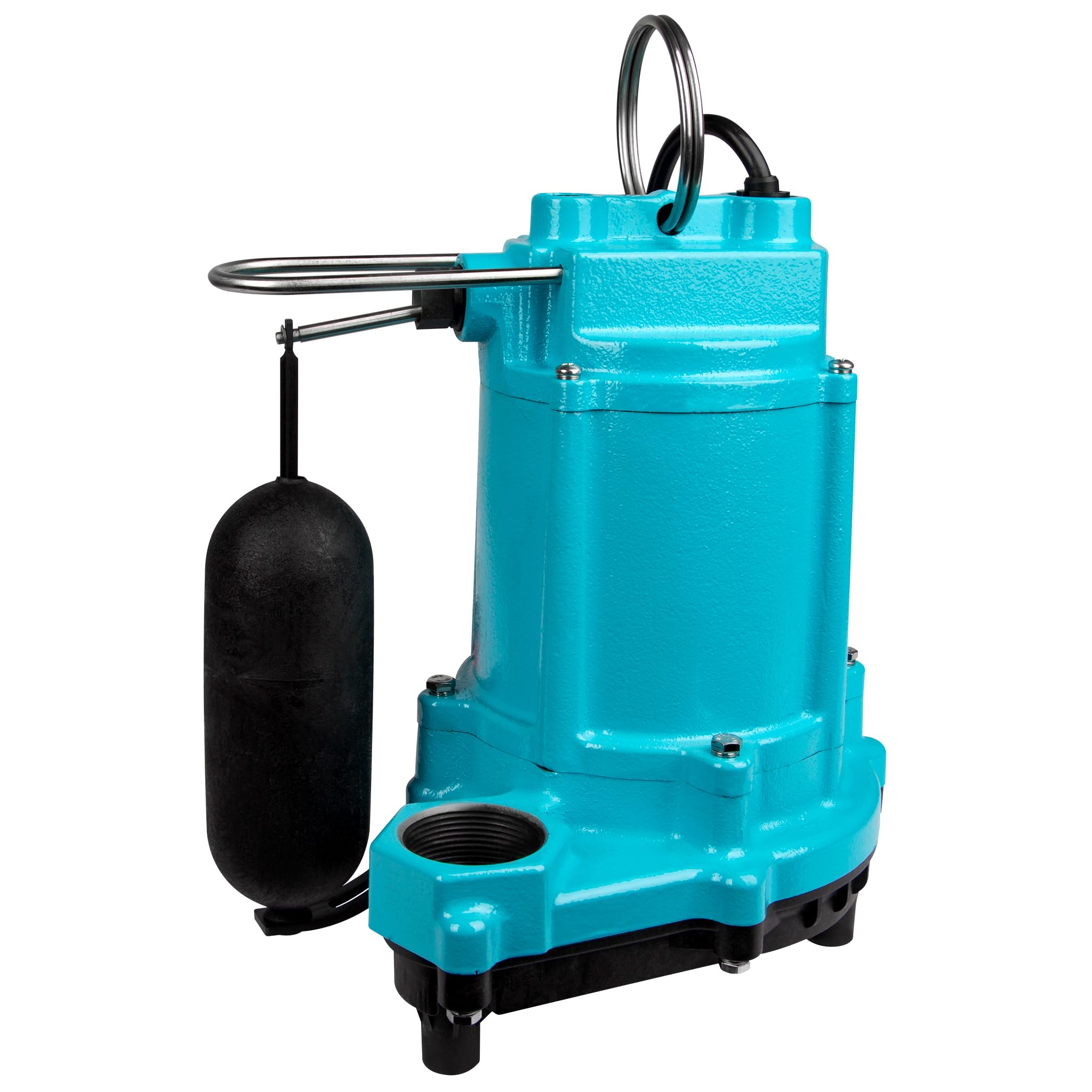

6EC Series Sump & Light Effluent Pump

This Little Giant 6EC Series sump and light effluent pump is designed for continuous duty in basins or lift stations, efficiently pumping clear water or effluent gray water with up to 1/2 inch spherical semi-solids. It features a 1/3 horsepower PSC motor for energy efficiency and cooler operation, housed in a heavy-duty cast iron body. The pump offers multiple automatic switch options, including an integral snap-action float, and delivers 53 gpm at 5 feet of head with a maximum shut-off of 28 feet. Ideal for basement sump and light effluent applications.

Technical Details

The Little Giant 6EC Series Sump & Light Effluent Pump is a 1/3 HP, 115V submersible pump designed for continuous duty. It features a cast iron pump body, a nylon impeller, and a 1.5" FNPT discharge. The pump is equipped with an integral snap-action float switch for automatic operation and has a maximum liquid temperature rating of 140 °F. Performance includes a maximum flow rate of 53 gpm and a shut-off head of 28 feet.

Technical Specifications
