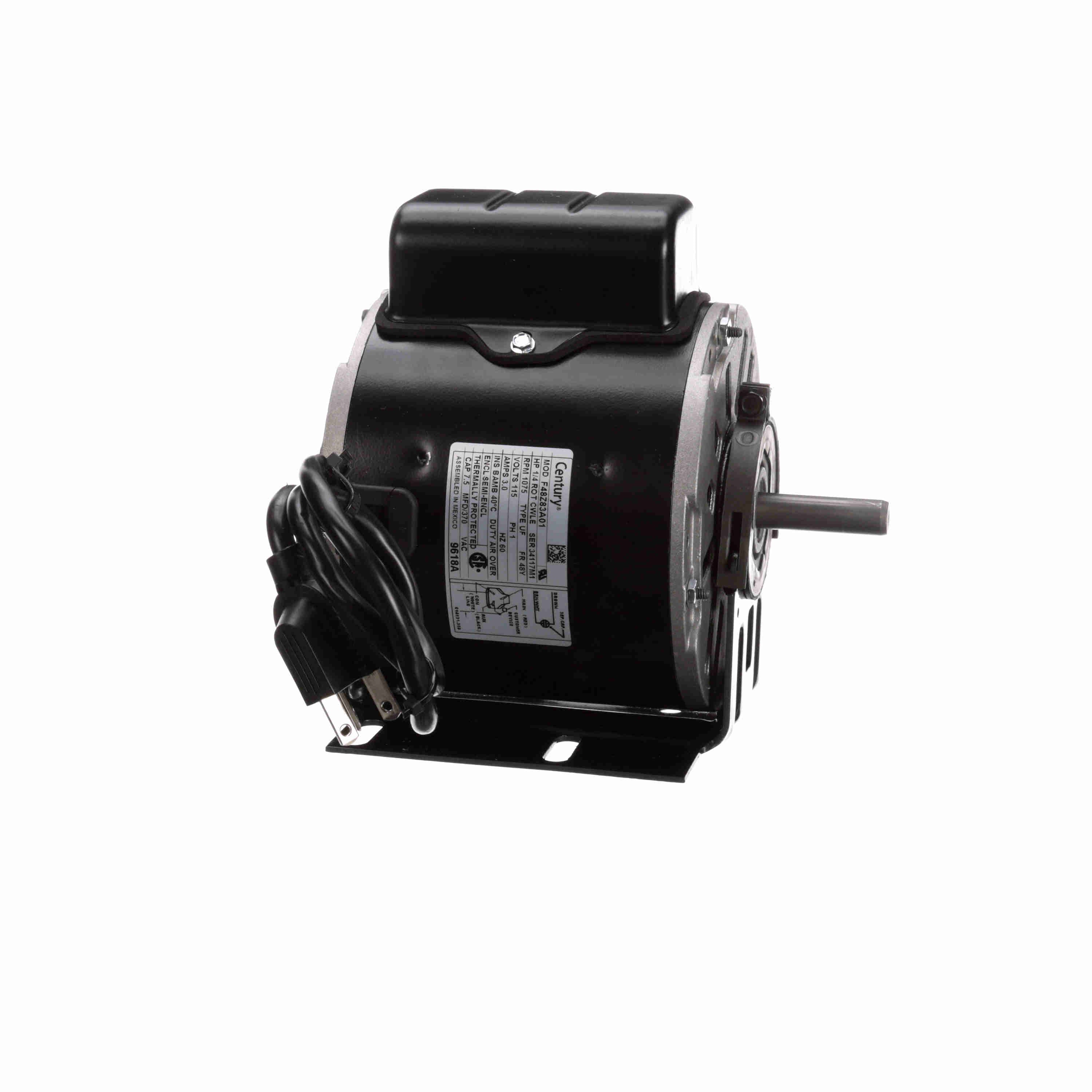

Century 9618A 5.6" Diameter HVAC OEM Replacement Motor

This Century 9618A HVAC OEM Replacement Motor is a reliable 1/4 HP, 115V unit designed for continuous duty. Featuring a 5-5/8" diameter and an OAO (Open Air Over) enclosure, it's built for durability. The motor includes an automatic thermal protection system and comes with a 7.5MFD @ 370VAC capacitor, along with a lead and plug assembly for easy installation. It's a direct replacement or substitute for various A.O. Smith, Century, Fasco, and Universal Electric motor models.

Technical Details

The Century 9618A is a 1/4 horsepower, 115-volt Permanent Split Capacitor (PSC) motor operating at 1075 RPM. It features a 48Y frame and an Open Air Over (OAO) enclosure, with cradle mounting. The motor has a 5-5/8" diameter, a 1/2" shaft diameter, and a 2-1/8" shaft length. It rotates CCW at the shaft end and has a single speed. Other specifications include a 3-amp draw, 60 Hz frequency, 1 phase, a service factor of 1.00, ball bearings, automatic thermal protection, and a maximum ambient temperature of 40° C. The insulation class is B, and it is designed for continuous duty. A 7.5MFD @ 370VAC capacitor is included, along with a lead and plug assembly.
