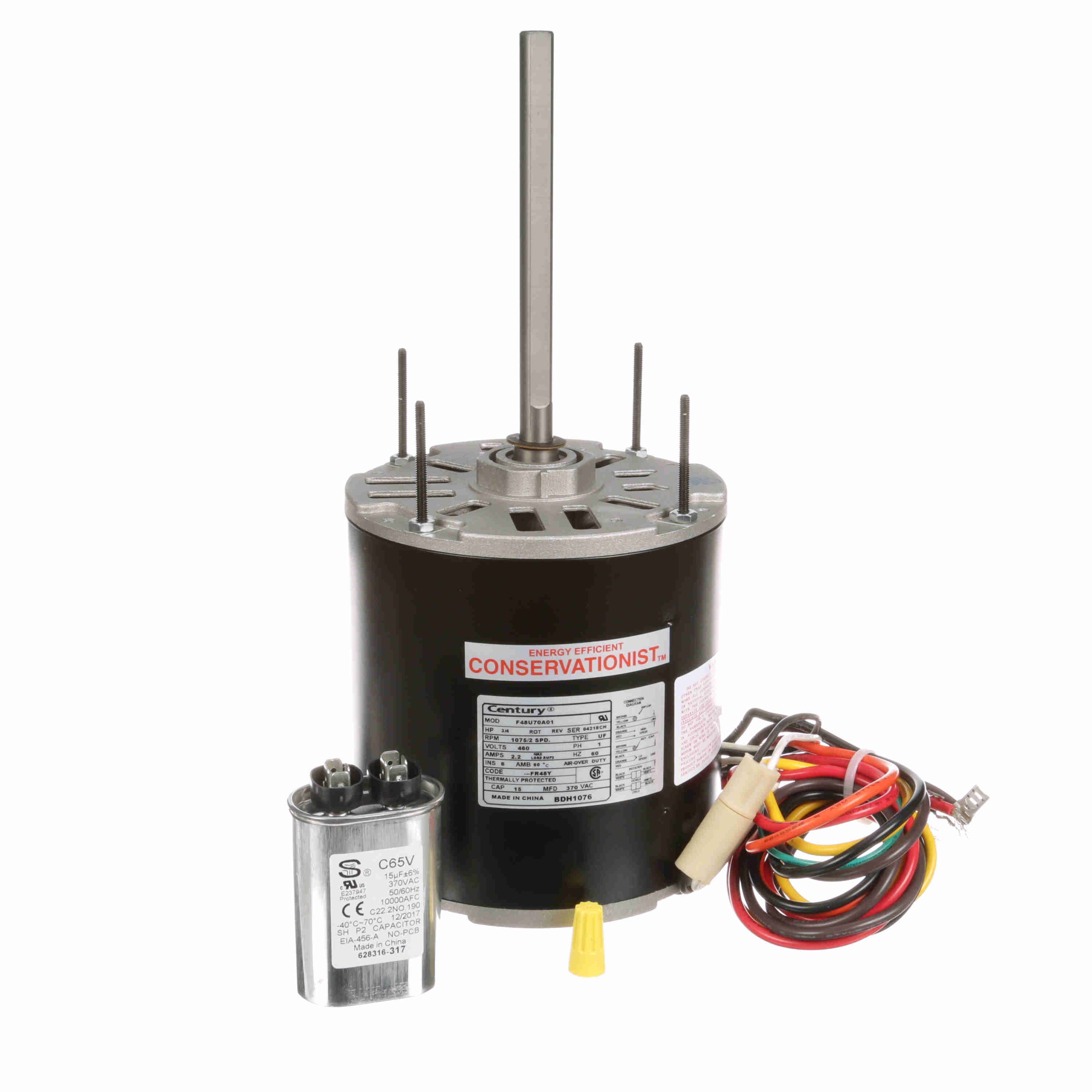

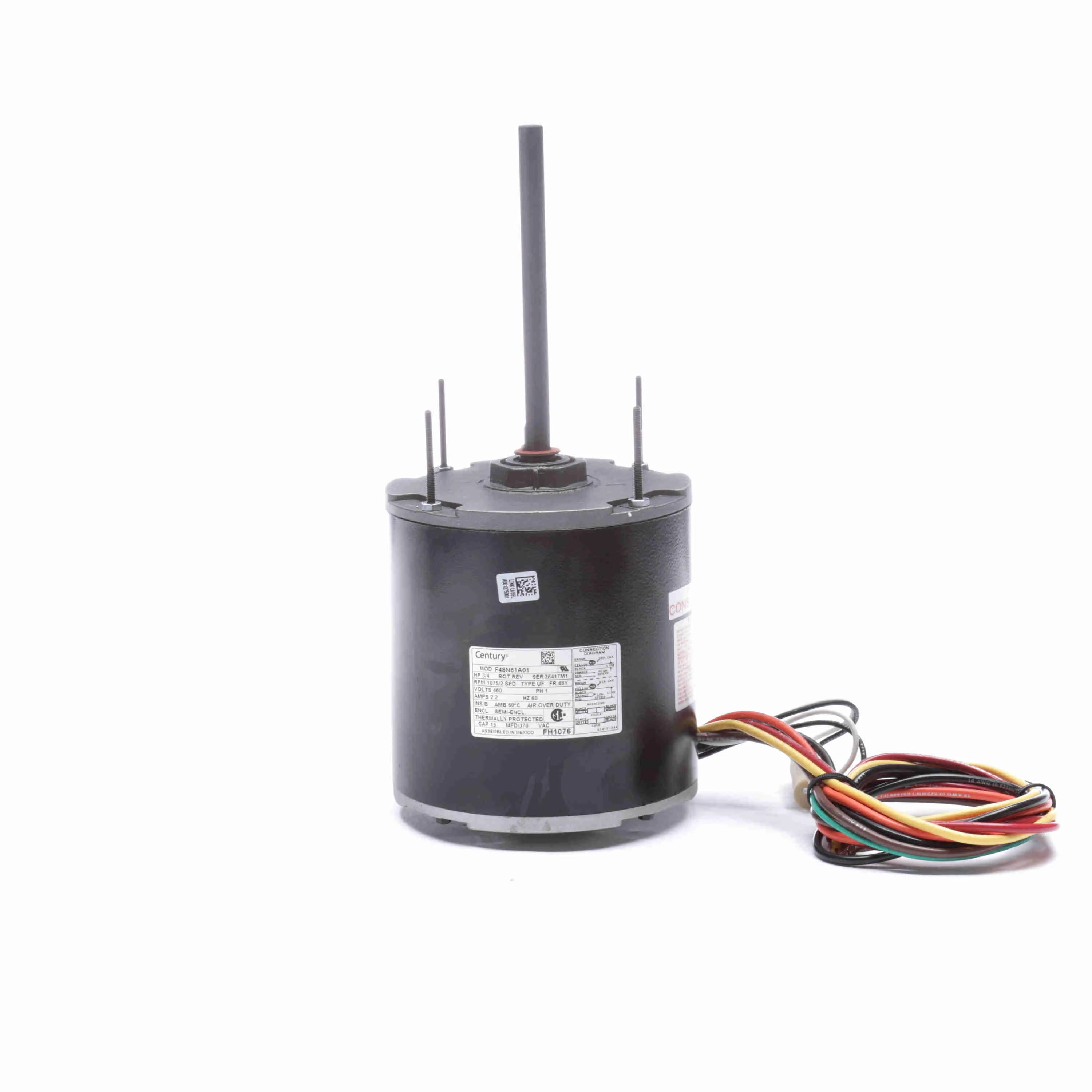

Century BDH1076 5.6" Diameter HVAC Direct Drive Fan Motor

This Century BDH1076 is a high-performance 3/4 HP Direct Drive Blower Motor designed for HVAC applications. Featuring a reversible rotation and 2 speeds, this energy-efficient motor operates at 1075 RPM and 460V. It boasts a durable rolled steel frame, ball bearings for reliable operation, and automatic thermal protection. The OAO (Open Air Over) enclosure type ensures efficient cooling, and it includes a 15MFD @ 370VAC capacitor. This motor is a possible substitute for various A.O. Smith and GE models, offering a versatile replacement solution.

Technical Details

The Century BDH1076 is a 3/4 HP, 1075 RPM, 2-speed, 460V, 1-phase Permanent Split Capacitor (PSC) motor. It features a 48Y frame, OAO (Open Air Over) enclosure, and reversible rotation. The motor has a 5-5/8" diameter, a 1/2" shaft diameter, and a 6.44" shaft length. It is equipped with ball bearings, automatic thermal protection, and a continuous duty cycle. The maximum ambient temperature is 60° C, with Class B insulation. The included capacitor is 15MFD @ 370VAC. It has a service factor of 1.00 and includes a reversing plug and hex mounting hubs on both ends for cradle base mounting.
