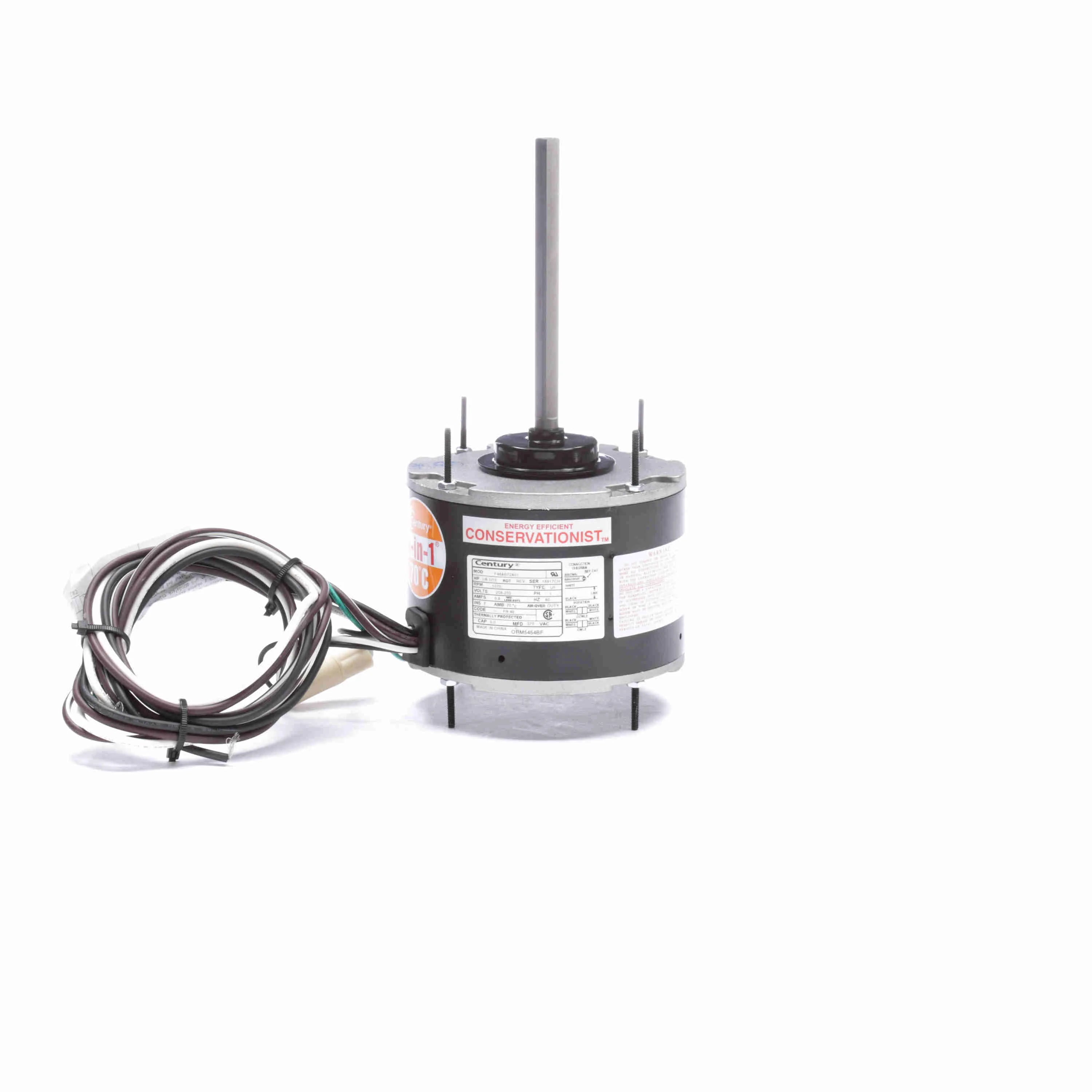

Century Condenser Fan Motor, 1075 RPM, 1/8-1/15 HP, 208-230 V, 48 Frame, Totally Enclosed Air Over

This Century 4-in-1 HeatMaster Condenser Fan Motor is designed for reliable performance in HVAC applications. With a 5.6" diameter and 48 frame, it features a Permanent Split Capacitor (PSC) electrical type and requires a 5 Mfd-370 Volts capacitor (not supplied). It operates at 1075 RPM and is built with a durable rolled steel frame. The motor is totally enclosed and air over, providing protection in demanding environments. It includes extended studs on both shaft ends for versatile mounting and 48" color-coded leads for easy installation. This motor is designed to replace motors in units by Carrier/Bryant and others, offering a dependable solution for your condenser fan needs. It boasts automatic thermal protection and Class F insulation for long thermal life, with UL and CSA approval.

Technical Details

This Century Condenser Fan Motor is a 1/8-1/15 HP, 1075 RPM unit operating on 208-230 V. It features a 48 frame and a totally enclosed air over duty classification. The electrical type is Permanent Split Capacitor (PSC) and it requires a 5 Mfd-370 Volts capacitor. The motor has a service factor of 1 and automatic thermal protection. Its insulation class is F, and it is UL Recognized and CSA approved. The motor utilizes ball bearings and has a double flat shaft type with a diameter of 0.500 inches. Mounting is facilitated by extended studs on both shaft ends. The motor's frame length is 3.37 inches, shaft extension is 6.5 inches, and overall length is 11.37 inches. It has a reversible rotation and is constructed with a rolled steel frame material. The ambient temperature rating is 70 °C.
