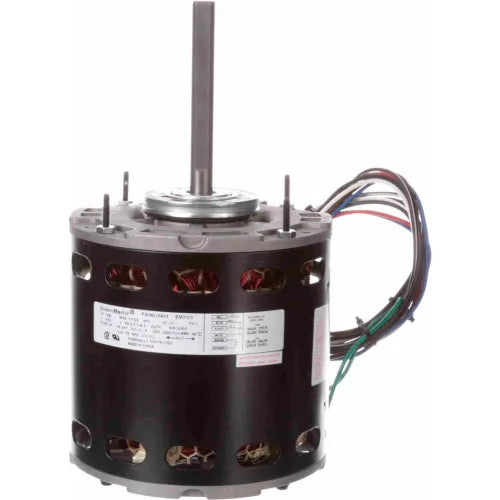

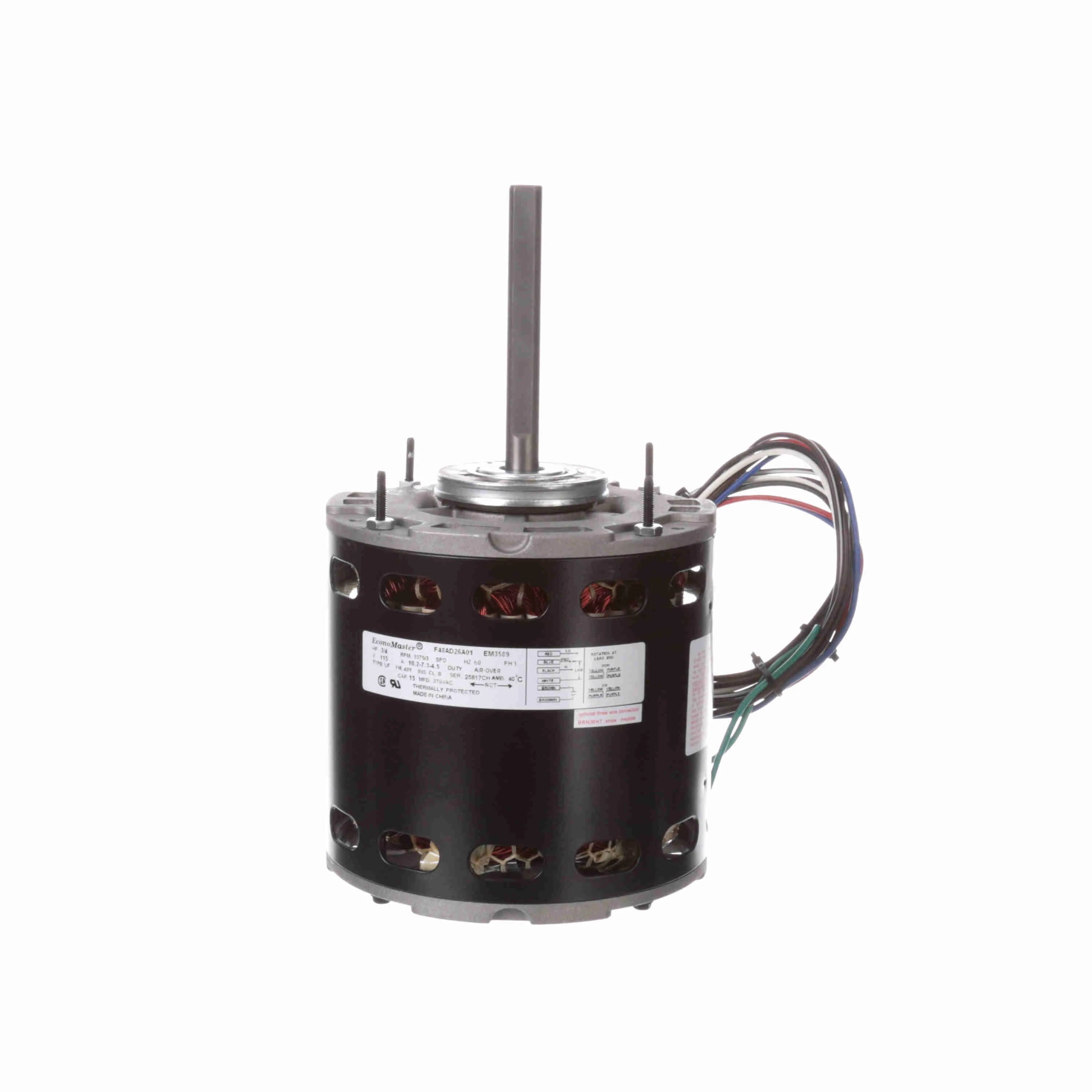

Century EM3589 5.6" Diameter HVAC Direct Drive Fan Motor - EM3589

This Century EM3589 is a powerful and reliable direct drive fan motor designed for HVAC applications. Featuring a 3/4 HP motor with 1075 RPM, it delivers efficient performance. The motor is built with a durable rolled steel enclosure and an OAO (Open Air Over) enclosure type, ensuring longevity in demanding environments. Its reversible rotation and automatic thermal protection provide flexibility and safety. This motor is ideal for various HVAC systems requiring a 5.6" diameter, 48Y frame motor.

Technical Details

The Century EM3589 is a 3/4 HP, 115V direct drive fan motor with a 1075 RPM speed. It operates on 60 Hz and has a 1.0 service factor. The motor features a 5.6" diameter, a 4-3/4" motor shell length, and an overall length of 10.36". It has a 1/2" shaft diameter and a 4" shaft length. The insulation class is B, and it has automatic thermal protection. The mounting is stud with a horizontal mounting orientation. The enclosure is rolled steel, and the enclosure type is OAO (Open Air Over). It is a PSC (Permanent Split Capacitor) product type and offers reversible rotation. The maximum ambient temperature is 40° C.

Technical Specifications
