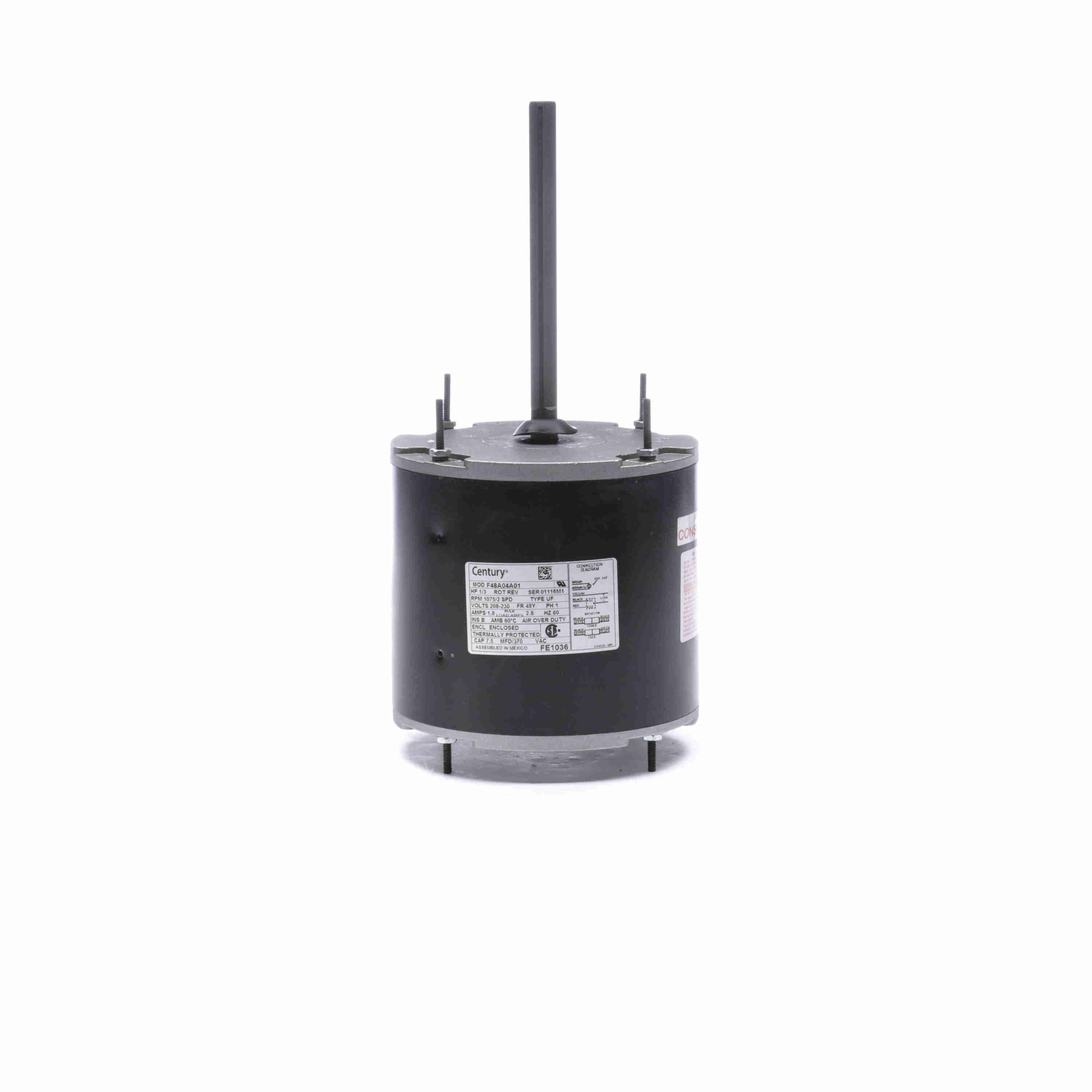

Century FE1036 5.6" Diameter HVAC Condenser Fan Motor

This Century FE1036 condenser fan motor is a reliable and efficient choice for your HVAC system. Featuring a 1/3 HP motor with 2 speeds at 1075 RPM, it operates on 208-230V. The totally enclosed air over (TEAO) design and Class B insulation with 60°C ambient temperature rating ensure durability. It includes a 1/2" diameter shaft with a double flat and 27" leads for easy installation. This motor is also energy efficient and features automatic thermal protection.

Technical Details

The Century FE1036 is a 1/3 HP, 2-speed (1075 RPM) condenser fan motor designed for 208-230V systems. It has a 5.6-inch frame diameter and a 48Y frame size. The motor features a TEAO enclosure type, ball bearings, and automatic thermal protection. The shaft is 1/2" in diameter with a double flat and measures 6" in length. It includes 27" leads and extended studs on both the shaft and lead ends. The insulation class is B, suitable for a maximum ambient temperature of 60°C. A 7.5MFD @ 370VAC capacitor is required. It is a Permanent Split Capacitor (PSC) motor with a service factor of 1.00 and a continuous duty cycle. This motor is reversible and has no hubs on either end. It is also listed as a possible substitute for numerous other motor models.

Technical Specifications
