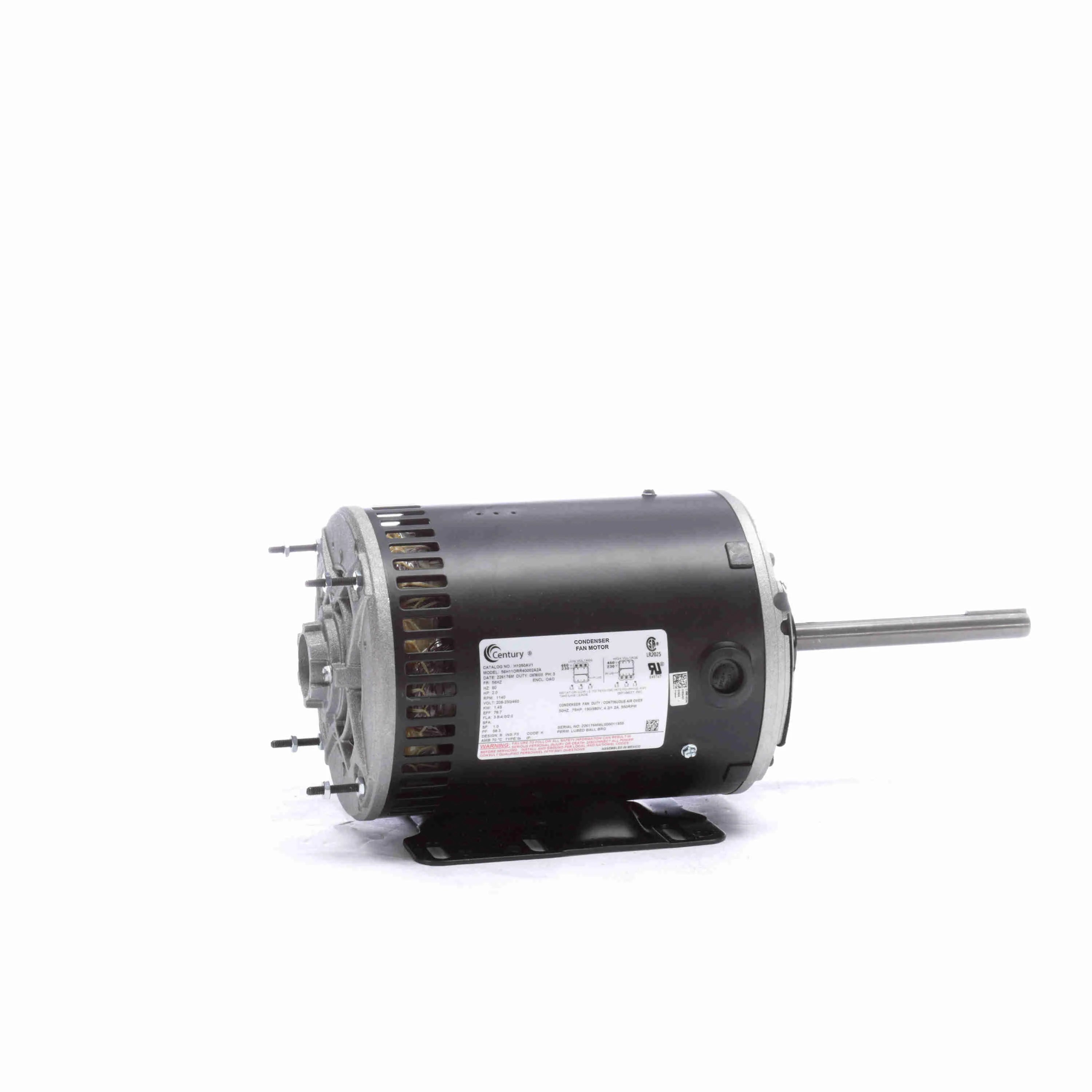

Century H1050AV1 1 HP 1140 RPM 460/208-230 Volts Condenser Fan Motor

The Century H1050AV1 is a powerful 1 HP condenser fan motor designed for commercial HVAC applications. Part of Century's JuggerNaut series, this motor boasts 1140 RPM and operates on 3-phase 208-230/460 volt power. It features inverter duty wiring for use with variable frequency drives, a quick-connect design for easy installation, and an automatic reset thermal protector for safety. Built for demanding conditions, it includes double sealed ball bearings for long life, a shaft slinger to protect against moisture and dirt, and Class F insulation rated for up to 70°C ambient temperatures. The VCD™ Voltage Change Device allows for quick voltage adjustments on the spot, making it a versatile and reliable choice for outdoor condenser units.

Technical Details

The Century H1050AV1 is a 1 HP, 3-phase condenser fan motor with a speed of 1140 RPM. It is designed for operation with voltages of 208-230/460V and a frequency of 60Hz. The motor features a 56HZ frame and a 5/8 inch shaft diameter. It is an open air over motor with double sealed ball bearings and Class F insulation. The motor is inverter duty, includes an automatic reset thermal protector, and has a VCD™ Voltage Change Device. It can operate in ambient temperatures up to 70°C.

Technical Specifications
