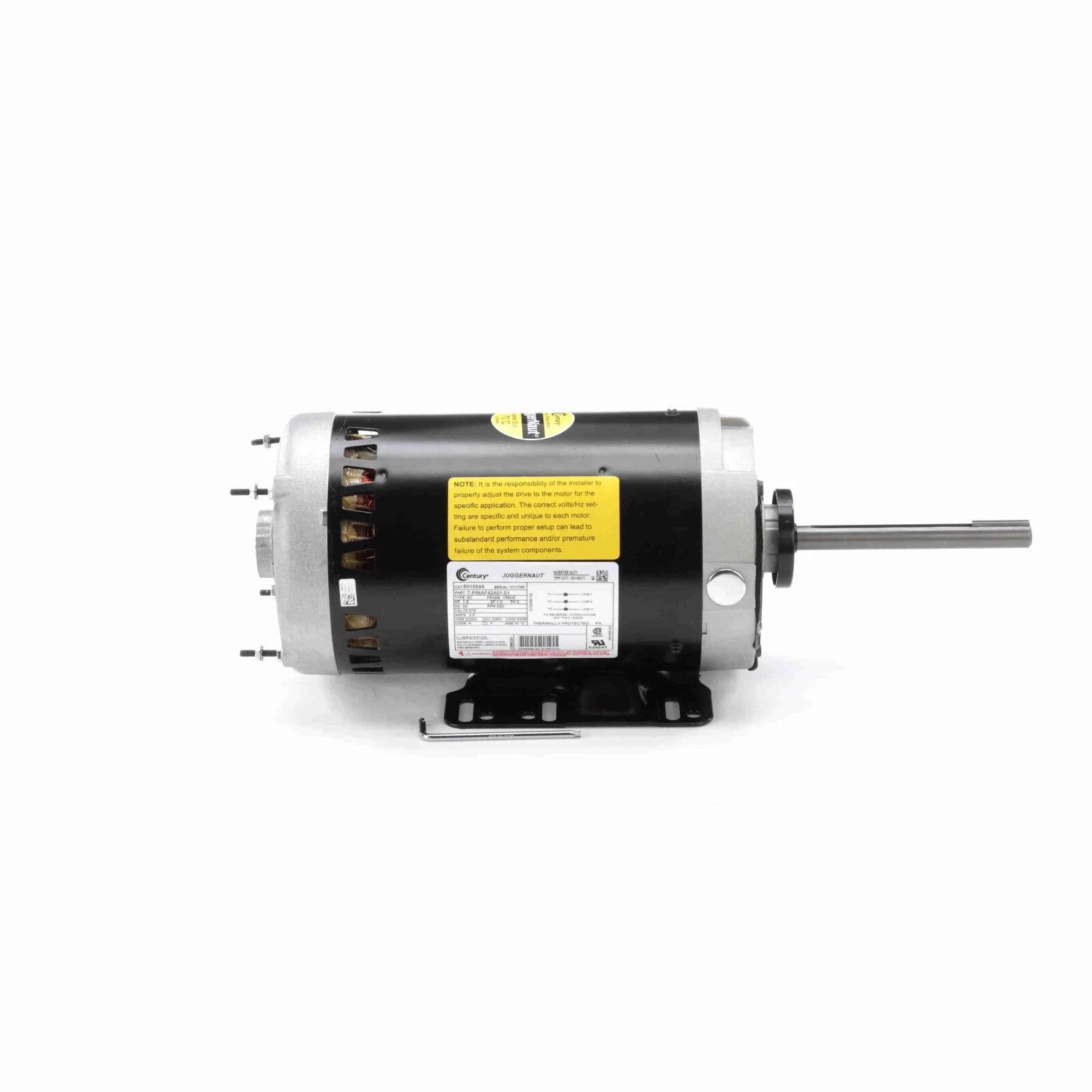

Century H1054AV1 HVAC Condenser Fan Motor

This Century Juggernaut motor is a robust and reliable replacement for your HVAC needs. Designed for inverter duty, it offers exceptional performance and longevity. Featuring a durable rolled steel enclosure and OAO (Open Air Over) protection, this motor is built to withstand demanding conditions. Its reversible rotation provides flexibility in application, and the automatic thermal protection ensures safe operation. With a continuous duty cycle, it's engineered for consistent, long-term use.

Technical Details

The Century H1054AV1 is a 1.5 HP, 850 RPM, three-phase induction motor. It operates on 575V, 60Hz power and features a 56HZ NEMA frame. The motor has a keyed shaft with a 5/8 inch diameter and 6 inch length. It is rated for continuous duty and features Class F insulation and ball bearings. The enclosure type is OAO (Open Air Over) and it is base-mounted with a removable rigid base. It also includes inverter duty capabilities and automatic thermal protection.
