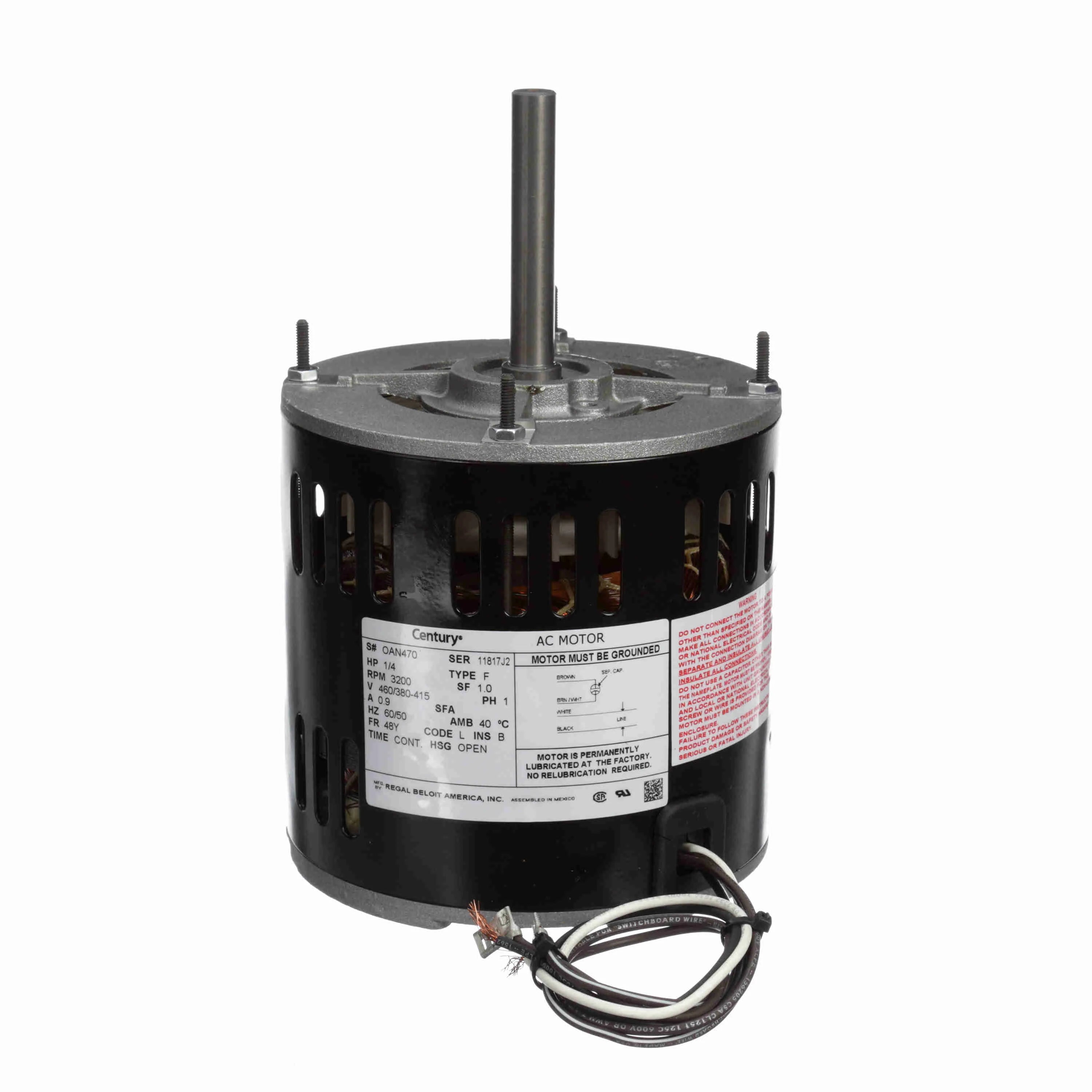

CENTURY OAN470 ODP Motor 1/4HP 3200RPM 460V 1PH 48Y Frame 1/2" Shaft

This Century OAN470 is an OEM direct replacement motor designed for HVAC applications. Featuring a 1/4 HP output and a speed of 3200 RPM, it operates on 460/380-415 VAC with a 0.9A current draw. The motor has a 48 frame size, Permanent Split Capacitor electrical type, and an Open Air Over enclosure. It is thermally protected with automatic reset and utilizes ball bearings for reliable operation. The shaft measures 1/2" in diameter with a flat, and the motor comes with 11" leads. Mounting is achieved via a round belly band and extended studs.

Technical Details

The Century OAN470 is a 1/4 HP electric motor with a speed of 3200 RPM. It operates on 460/380-415 VAC and 60 Hz frequency, drawing 0.9A of current. This single-phase motor features a 48Y frame and a Permanent Split Capacitor electrical type. It has a service factor of 1 and continuous duty rating. Thermal protection is automatic, and it is UL recognized. The motor has 2 poles and is designed for horizontal mounting with a round belly band. It uses ball bearings on both the drive and opposite drive ends. The frame is made of rolled steel, and the shaft type is flat with a diameter of 0.500 inches and an extension of 3-1/4 inches. The overall length is 8.74 inches. Insulation class is B with a maximum ambient temperature of 40°C. The rotation is counterclockwise lead end. A 5MFD @ 370VAC capacitor is required but not included. It replaces models like F48S08A27.
