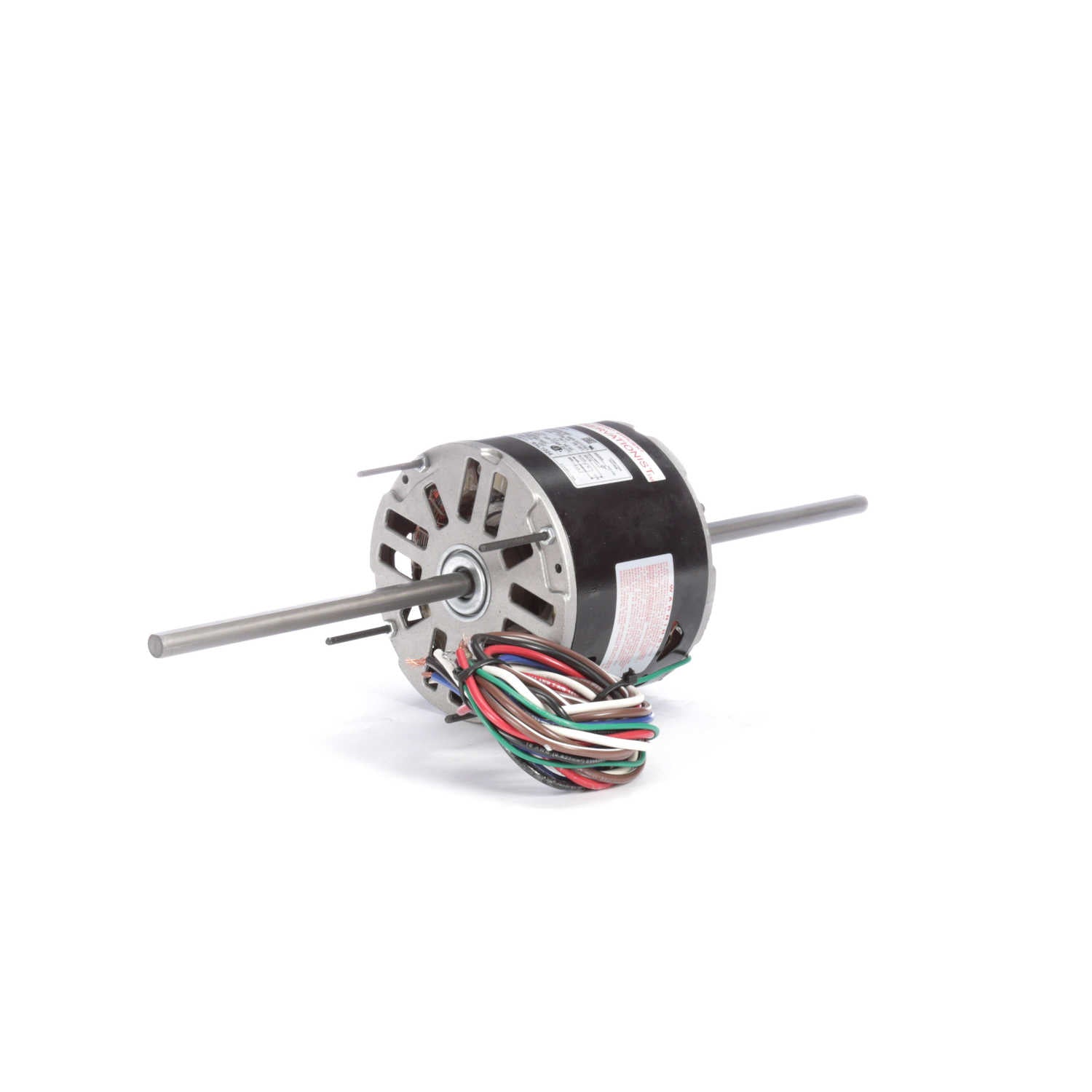

Century RAL1024 5.6" Diameter HVAC Fan Coil and Room Air Conditioning Motor

The Century RAL1024 is a versatile 1/4 HP, 1625 RPM, 115V direct drive blower motor designed for HVAC fan coil and room air conditioning applications. Featuring a 5.6" diameter, double shaft, and an open air-over enclosure, this motor is built for continuous duty and offers energy efficiency. It comes with mounting accessories and is a possible substitute for a wide range of GE, A.O. Smith, Carrier/BDP, Emerson, Fasco, Dayton, Leland Faraday, and Universal Electric models, making it a flexible replacement option. The motor is equipped with automatic thermal protection and sleeve bearings for reliable operation. It typically ships within 1 business day and includes a 1-year manufacturer's warranty.

Technical Details

This Century RAL1024 is a 1/4 HP, 1625 RPM, 115V Permanent Split Capacitor (PSC) motor with a 5.6" diameter. It operates at 60 Hz and 1 phase, featuring a 48Y frame and an Open Air Over (OAO) enclosure. The motor is double-shafted with a 1/2" shaft diameter and shaft lengths of 7.64" and 8". It has 3 speeds, a service factor of 1.00, and sleeve bearings. Thermal protection is automatic, and the maximum ambient temperature is 40° C. The insulation class is A, and it is designed for continuous duty. A 5MFD @ 370VAC capacitor is required. Mounting is via band, ring, or stud, and mounting accessories are included.
