D0346 HVAC/R Motors, OEM Replacement

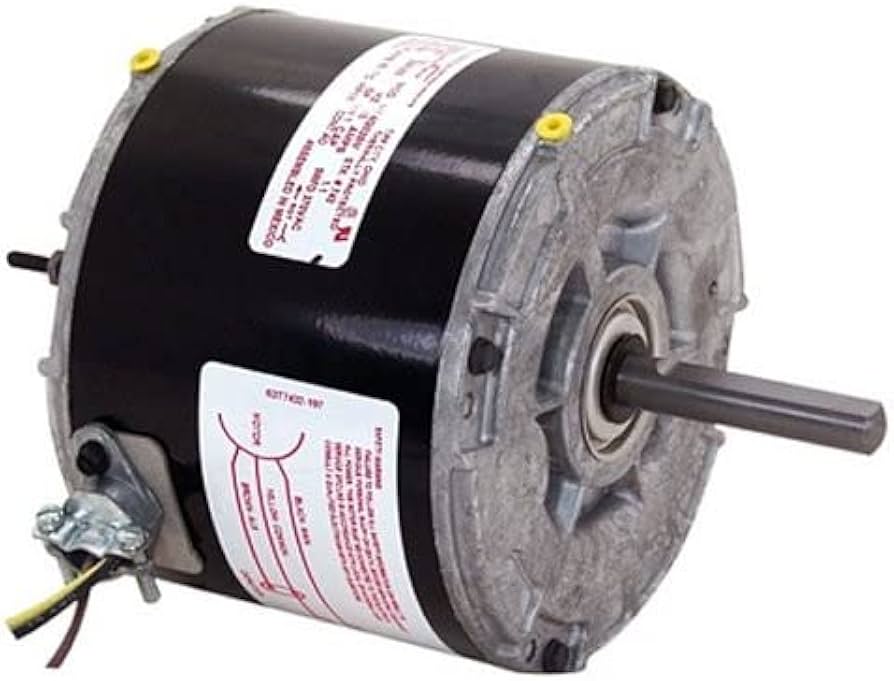

This AO Smith D0346 is a high-quality OEM replacement motor designed for HVAC/R applications. Featuring a Permanent Split Capacitor design, it operates at 115 Volts with 1/4 HP and offers two speeds, 1550 and 1050 RPM. This motor is thermally protected and built with Class B insulation, 10" leads with a plug assembly, and a lug mount. Its open air-over enclosure makes it suitable for various ventilation needs.

Technical Details

The AO Smith D0346 is a 1/4 HP, 115 Volt Permanent Split Capacitor (PSC) motor designed for HVAC/R applications. It operates at 1550 RPM and draws 2.90 Amps. This single-phase motor features clockwise rotation from the shaft end, an open air-over enclosure, and sleeve bearings. It is equipped with thermal protection and includes a 12.5 Mfd-370 Volts capacitor.

Technical Specifications
