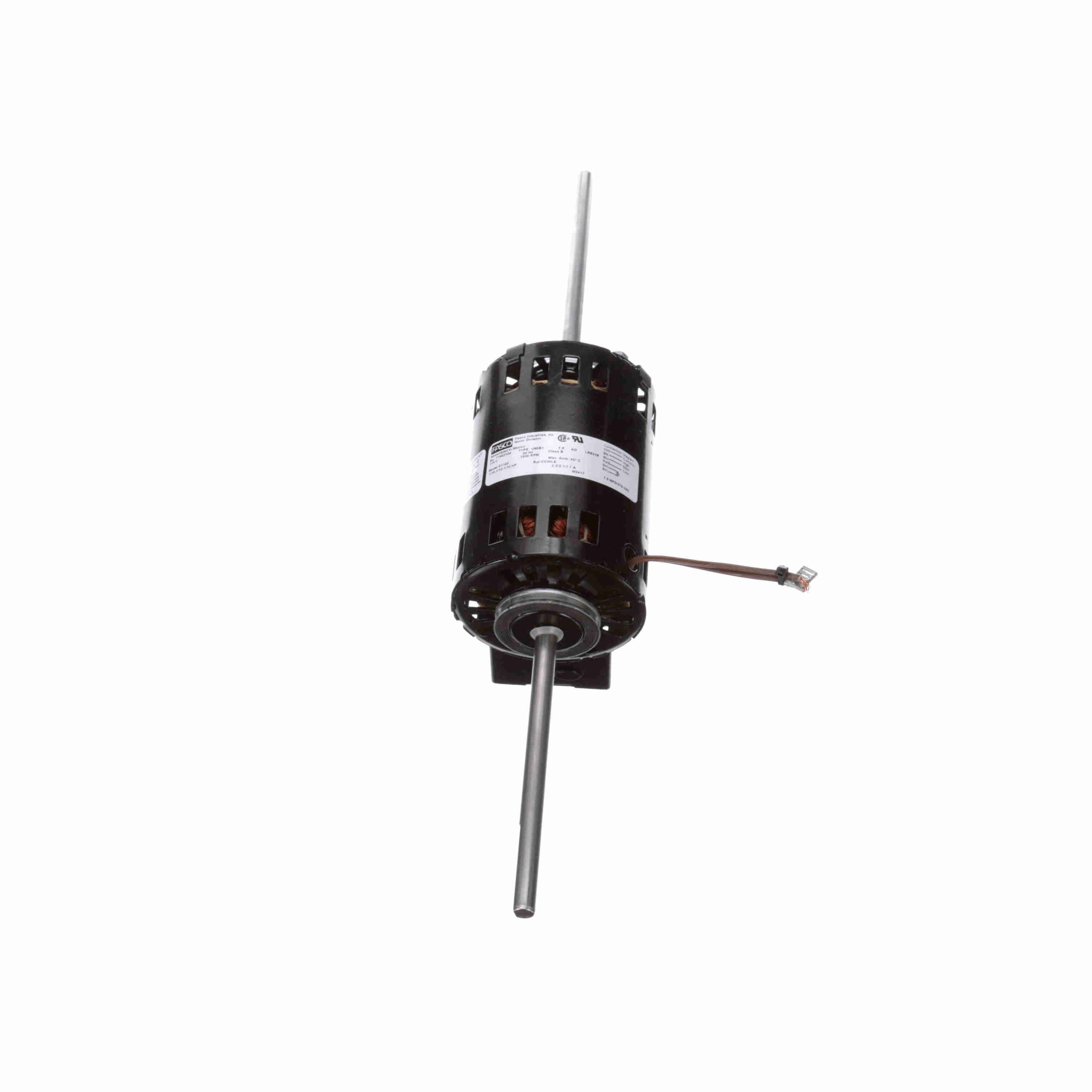

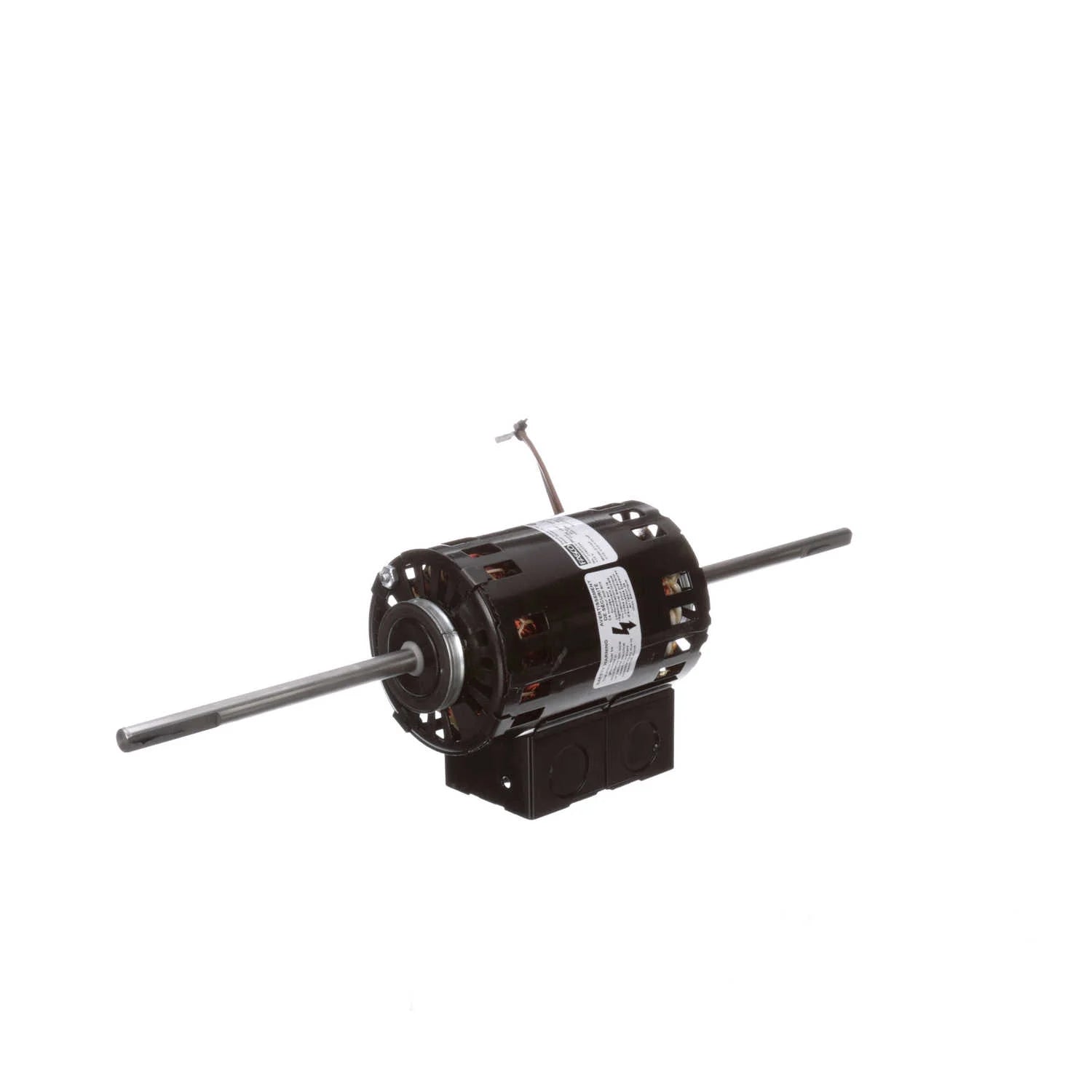

RBC D1140 OAO Motor 1/10 HP, 1 Ph, 60 Hz, 115 V, 1500 RPM, 3 Spd, 3.3" Dia

RBC D1140 OAO Motor 1/10 HP, 1 Ph, 60 Hz, 115 V, 1500 RPM, 3 Spd, 3.3" Dia

Trade-account pricing & availability.

Open a commercial account, or contact us, for pricing, availability, and pickup at Laval, Ville Saint-Laurent and Longueuil.

Availability by branch

  • Laval Not available
  • Longueuil Not available
  • Saint-Laurent Not available
Open an account Contact us
The Fasco D1140 is a 1-phase, 115V motor operating at 1500 RPM with a 60 Hz frequency. It delivers 1/10 HP (0.07 kW) and has a service factor of 1. The motor features a 3.3" frame and is thermally protected. Its insulation class is B, and it is designed for air over duty with a maximum ambient temperature of 40°C. The electrical type is Permanent Split Capacitor, with 4 poles. Mounting is achieved via resilient rings, and it utilizes sleeve bearings on both the drive and opposite drive ends. The shaft is flat with a diameter of 3/8" and an extension of 5.625". The overall length is 16.05 inches, with a frame length of 4.51 inches.

Specifications

Voltage 115 V
Horsepower 1/10 / 1/12 / 1/15 HP
RPM 1500 RPM
Phase 1 Ph
Frequency 60 Hz
Shaft Diameter 3/8
Motor type PSC
Enclosure OAO
Rotation CW shaft end / CCW lead end
Speeds 3
Full-load amps 2.2 A
Run capacitor 7.5 µF / 370 V µF / V
Bearings Sleeve
Mounting Resilient base
Motor diameter 3.3 in
Shaft length 5-5/8 in
Service factor 1
Thermal protection Auto
Max ambient 40 °C
