RBC REGAL BELOIT D1158 OAO Motor, 1/20 HP, 1550 RPM, 1 Ph, 115/208-230V, 3.3" Fr, 5/16"

RBC REGAL BELOIT D1158 OAO Motor, 1/20 HP, 1550 RPM, 1 Ph, 115/208-230V, 3.3" Fr, 5/16"

Trade-account pricing & availability.

Open a commercial account, or contact us, for pricing, availability, and pickup at Laval, Ville Saint-Laurent and Longueuil.

Availability by branch

  • Laval Not available
  • Longueuil Not available
  • Saint-Laurent Not available
Open an account Contact us

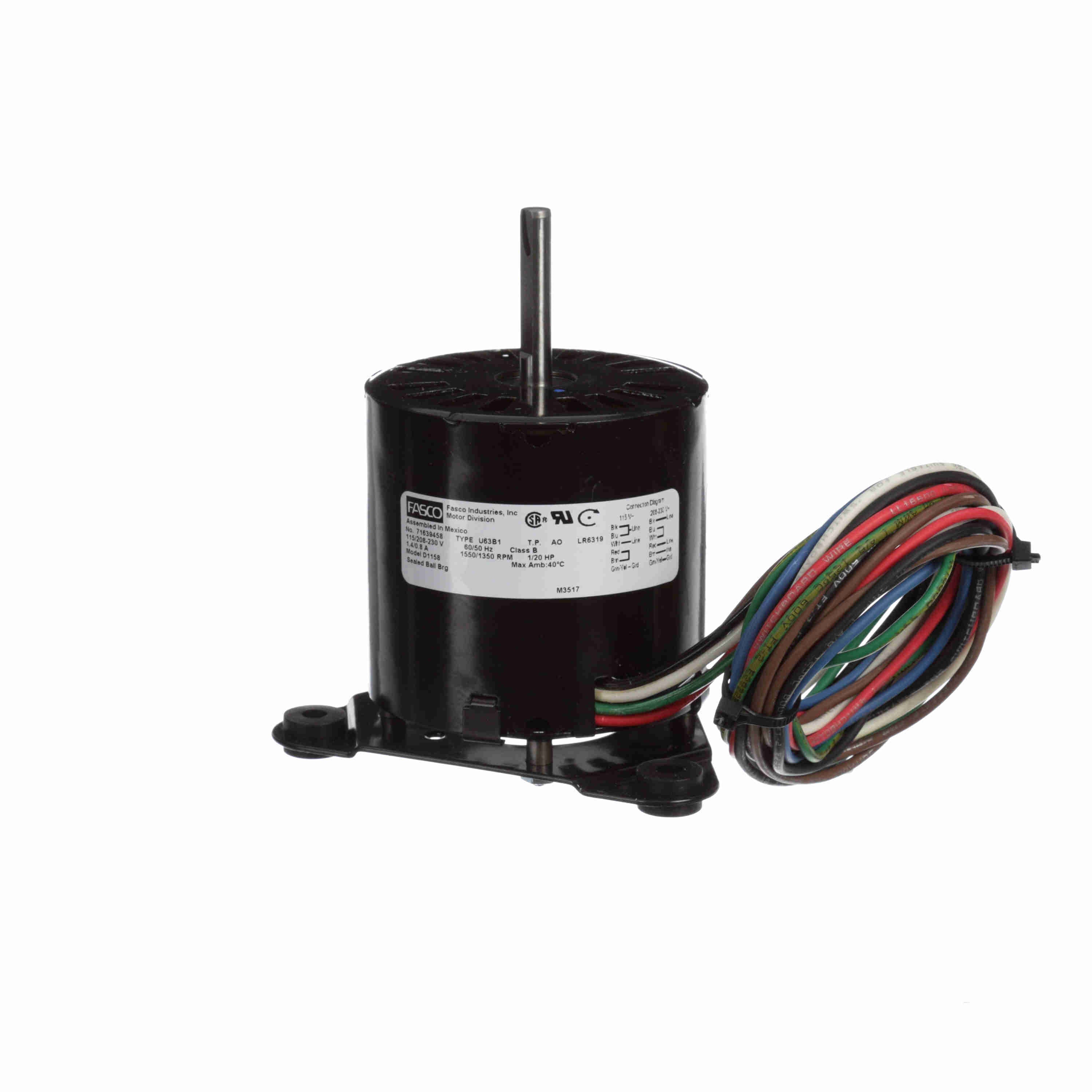

This Fasco D1158 motor is a 1/20 HP, single-speed shaded pole motor with a speed of 1550 RPM. It operates on dual voltage (115/208-230V) and draws 1.40/0.80 amps. The motor features a 0.313-inch diameter shaft with a length of 1.65 inches and a single shaft type. Its frame size is 3.3, with a motor diameter of 3.3 inches and a frame length of 2.95 inches. The enclosure type is OAO, and it is constructed from rolled steel. The motor has ball bearings and a clockwise, single-end (CWSE) rotation. The motor length less shaft is 3 5/16 inches. It comes with a 1-year manufacturer warranty.

Specifications

Voltage 115/208-230 V
Horsepower 1/20 HP
RPM 1550 RPM
Phase 1 Ph
Frame 3.3"
Shaft Diameter 5/16
