RBC REGAL BELOIT CANADA D201 ODP Motor 1/85 HP 115V 3000 RPM 1ph 60Hz 1/4" Shaft

RBC REGAL BELOIT CANADA D201 ODP Motor 1/85 HP 115V 3000 RPM 1ph 60Hz 1/4" Shaft

Trade-account pricing & availability.

Open a commercial account, or contact us, for pricing, availability, and pickup at Laval, Ville Saint-Laurent and Longueuil.

Availability by branch

  • Laval Not available
  • Longueuil Not available
  • Saint-Laurent Not available
Open an account Contact us

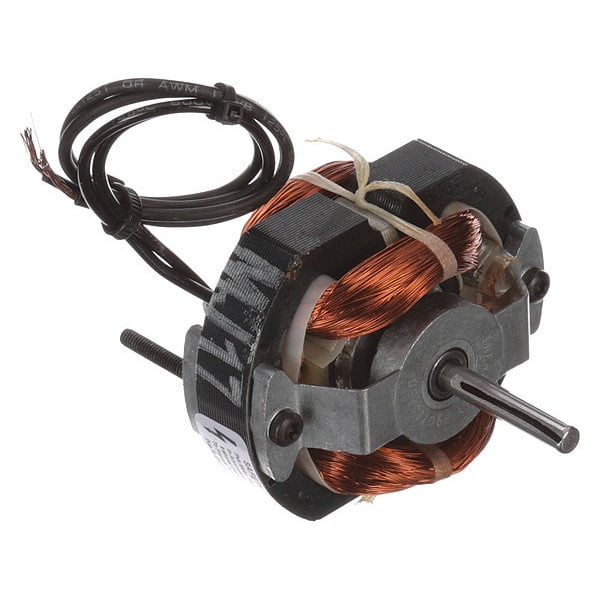

This Fasco D201 is a single-speed, shaded pole blower motor with a 1/85 HP rating and operates at 3000 RPM. It runs on 115 Volts and 60Hz, drawing 0.60 Amps. The motor features sleeve bearings and an open enclosure. Its body diameter is 3.3 inches, with a body stack (width) of 2-1/4 inches. The shaft dimensions are 1/4 inch by 1-3/8 inches, and it has a rotation of CW (Clockwise) when viewed from the opposite shaft end. Mounting is via through bolts with a 2-7/8 inch bolt circle.

Specifications

Voltage 115 V
Horsepower 1/85 HP
RPM 3000 RPM
Phase 1 Ph
Frequency 60 Hz
Shaft Diameter 1/4
