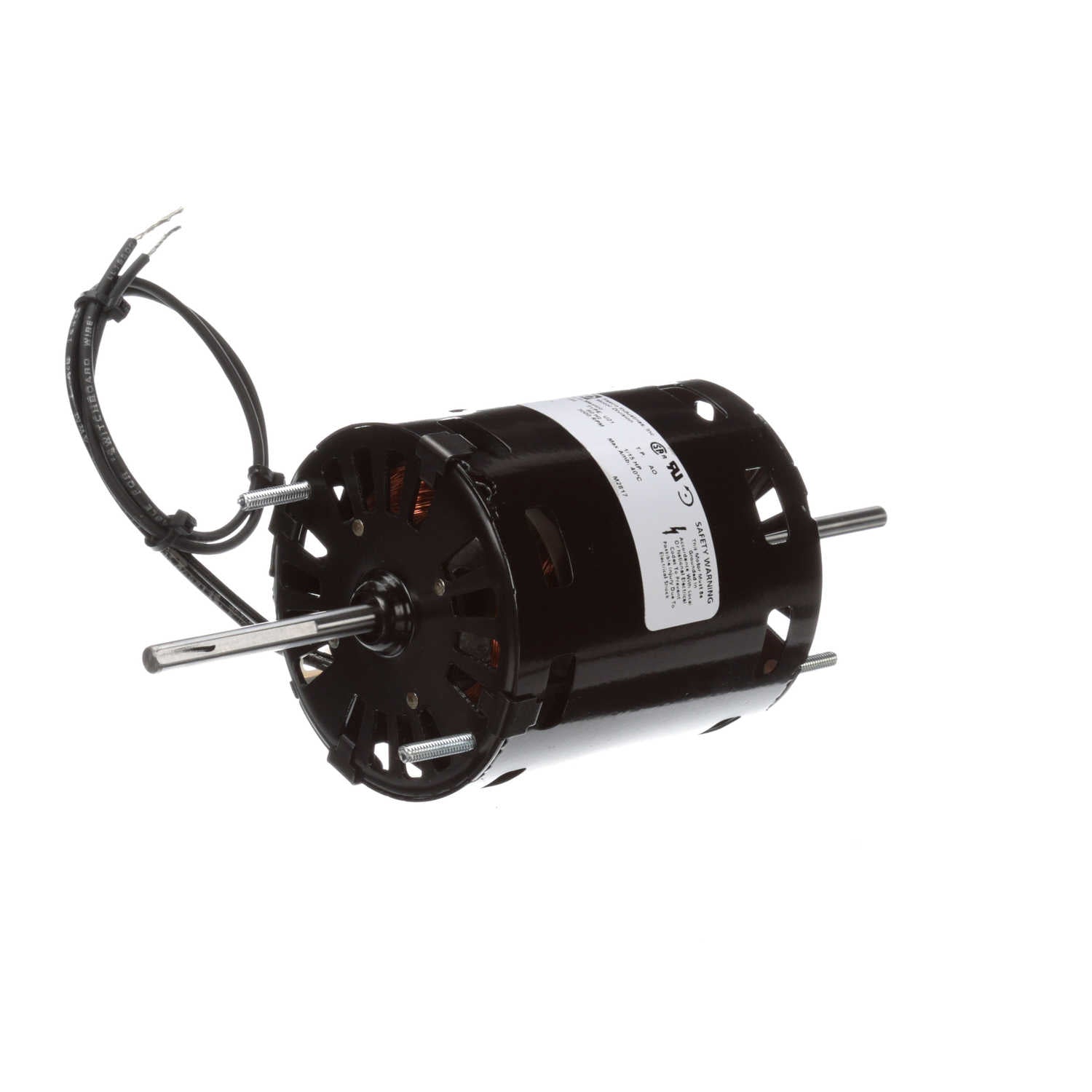

This Fasco D211 motor features a 1/15 HP rating, operates at 3000 RPM, and requires 230V. It is designed with a split-phase motor design and an open drip-proof enclosure. The motor has a 3.3" diameter and a closed base. Additional specifications include a 40 Degrees C max ambient temperature and continuous duty cycle.
RBC REGAL BELOIT D211 OAO Motor, 1/15 HP, 3000 RPM, 230V, 1-Speed, 3.3" Dia.
Specifications
| Voltage | 230 V |
|---|---|
| Horsepower | 1/15 HP |
| RPM | 3000 RPM |
| Phase | 1 Ph |
| Frequency | 60 Hz |
| Shaft Diameter | 1/4 |
| Motor type | Shaded pole |
| Enclosure | OAO |
| Rotation | CCW shaft end / CW lead end |
| Speeds | 1 |
| Full-load amps | 1.05 A |
| Bearings | Sleeve |
| Mounting | Stud |
| Motor diameter | 3.3 in |
| Shaft length | 2-1/2 in |
| Service factor | 1 |
| Max ambient | 40 °C |
