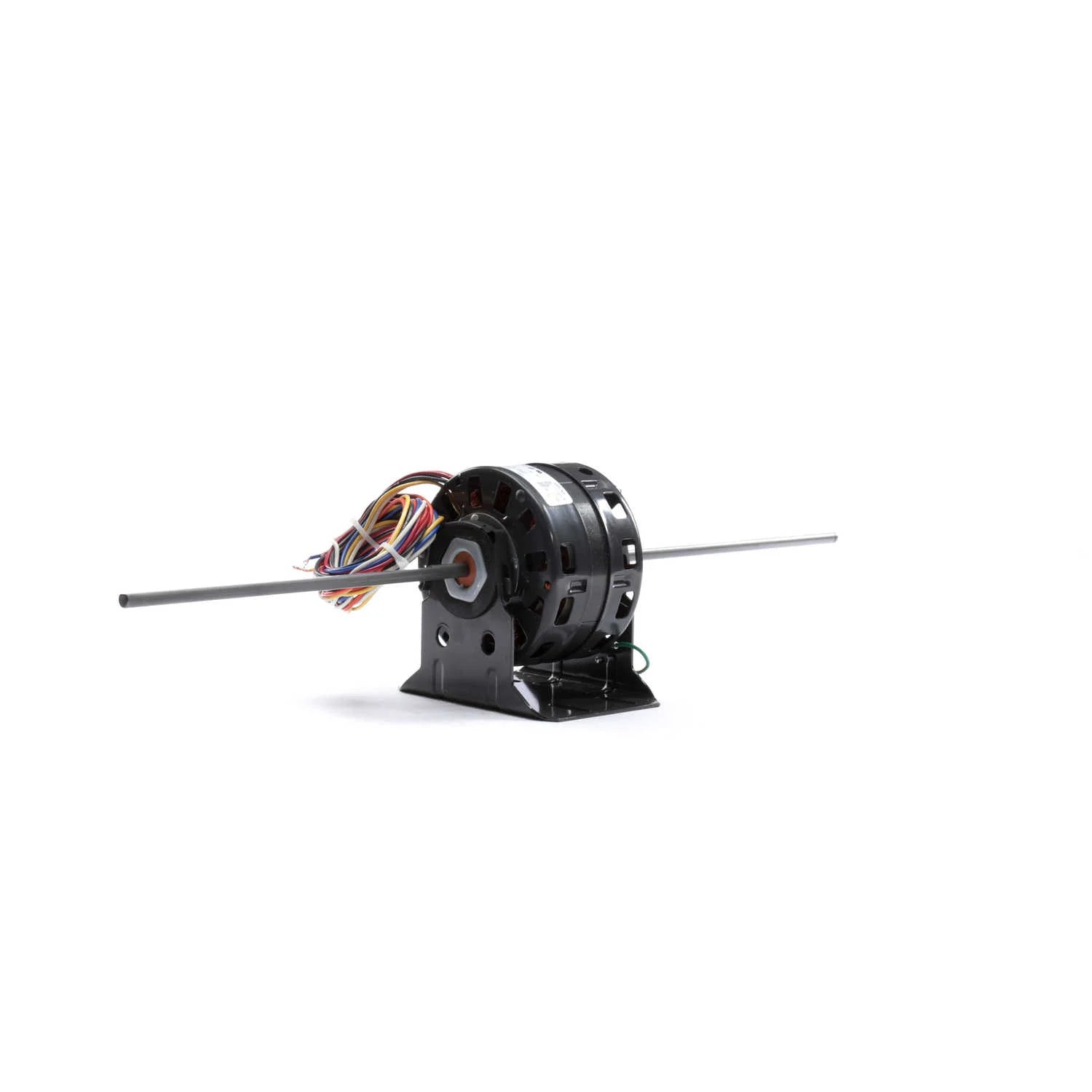

Fasco D293 Fan Coil Motor
This Fasco D293 Fan Coil Motor is a reliable split-phase motor designed for various applications. It offers multiple horsepower options (1/10, 1/30, 1/40, 1/45, 1/50 HP) and operates at a consistent 1050 RPM with 115V power. Featuring an open vent enclosure, this motor is built for ambient cooling and comes with sleeve bearings for smooth operation. It is a direct replacement for the Century 93V1.
Technical Details
The Fasco D293 is a split-phase fan coil motor with a nameplate speed of 1050 RPM and a voltage rating of 115V. It supports multiple horsepower ratings including 1/10, 1/30, 1/40, 1/45, and 1/50 HP, and operates on a single phase and 60 Hz frequency. The motor has 5 speeds and an open vent enclosure, with sleeve bearings and ambient cooling. Key shaft dimensions include a diameter of 0.375 inches and a length of 10.75 inches. Thermal protection is included, and the motor has a weight of 30.00 lbs.
Technical Specifications
| Voltage | 115 |
| Horsepower | 1/10, 1/30, 1/40, 1/45, 1/50 |
| RPM | 1050 |
| Phase | 1 |
| Frame Size | 5\ |
| Enclosure | OAO |
| Frequency | 60 |
| Full Load Amps | 3.6\/1.6\/1.2\/.8\/.6 |
| Shaft Diameter | 3/8 |
| Shaft Length | 10-3/4 |
| Thermal Protection | Yes |
