RBC D332 OAO Motor 1/25HP 115V 1500RPM 3.3" Frame 60Hz 5/16" Shaft

RBC D332 OAO Motor 1/25HP 115V 1500RPM 3.3" Frame 60Hz 5/16" Shaft

Trade-account pricing & availability.

Open a commercial account, or contact us, for pricing, availability, and pickup at Laval, Ville Saint-Laurent and Longueuil.

Availability by branch

  • Laval Not available
  • Longueuil Not available
  • Saint-Laurent Not available
Open an account Contact us

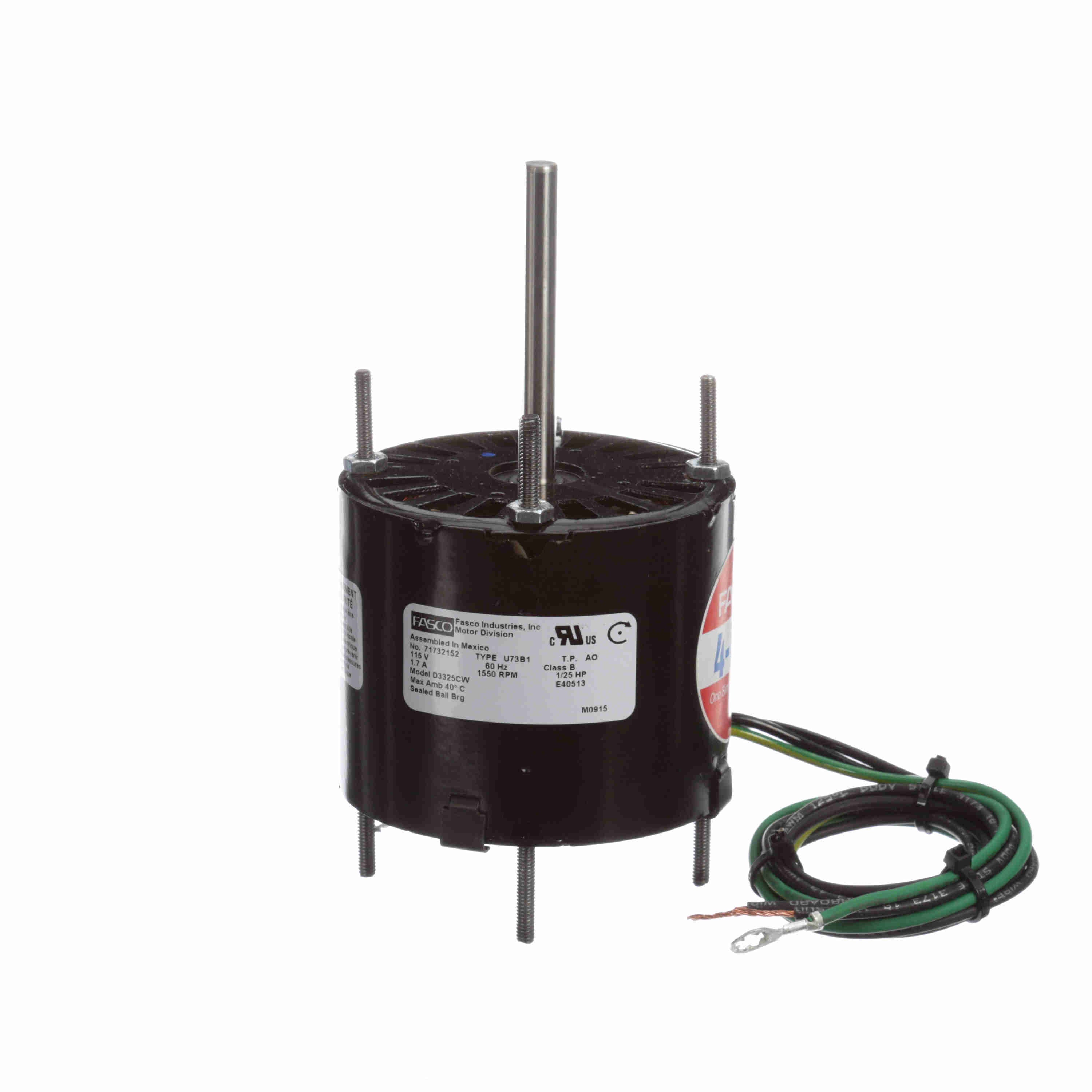

The Fasco D332 is a 1/25 HP, 2-speed motor that operates at 1500 RPM. It runs on 115 Volts and draws 1.5 Amps, with a frequency of 60 Hz. The motor features a 3.3-inch diameter and a shaft measuring 5/16" x 2". It utilizes a stud mount with a bolt circle of 2.85" and has four mounting studs on each end. The motor is equipped with sleeve bearings and has a length of 3 1/4" excluding the shaft. It is a shaded pole motor with open ventilation and air-over cooling. The motor's overall dimensions are 10.00 inches in width, 7.00 inches in height, and 5.00 inches in depth, with a weight of 4.00 LBS.

Specifications

Voltage 115 V
Horsepower 1/25 HP
RPM 1500 RPM
Frame 3.3"
Frequency 60 Hz
Shaft Diameter 5/16
