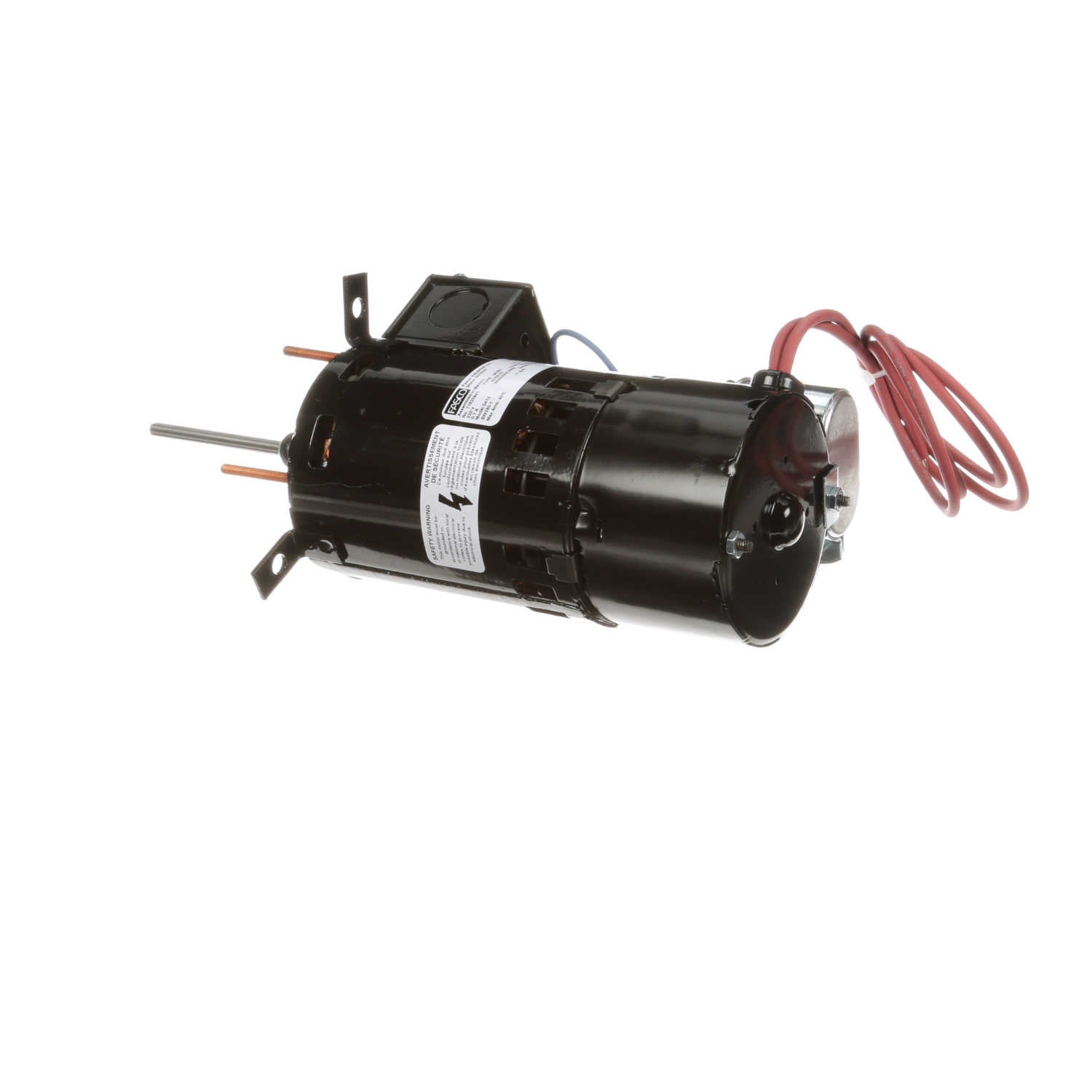

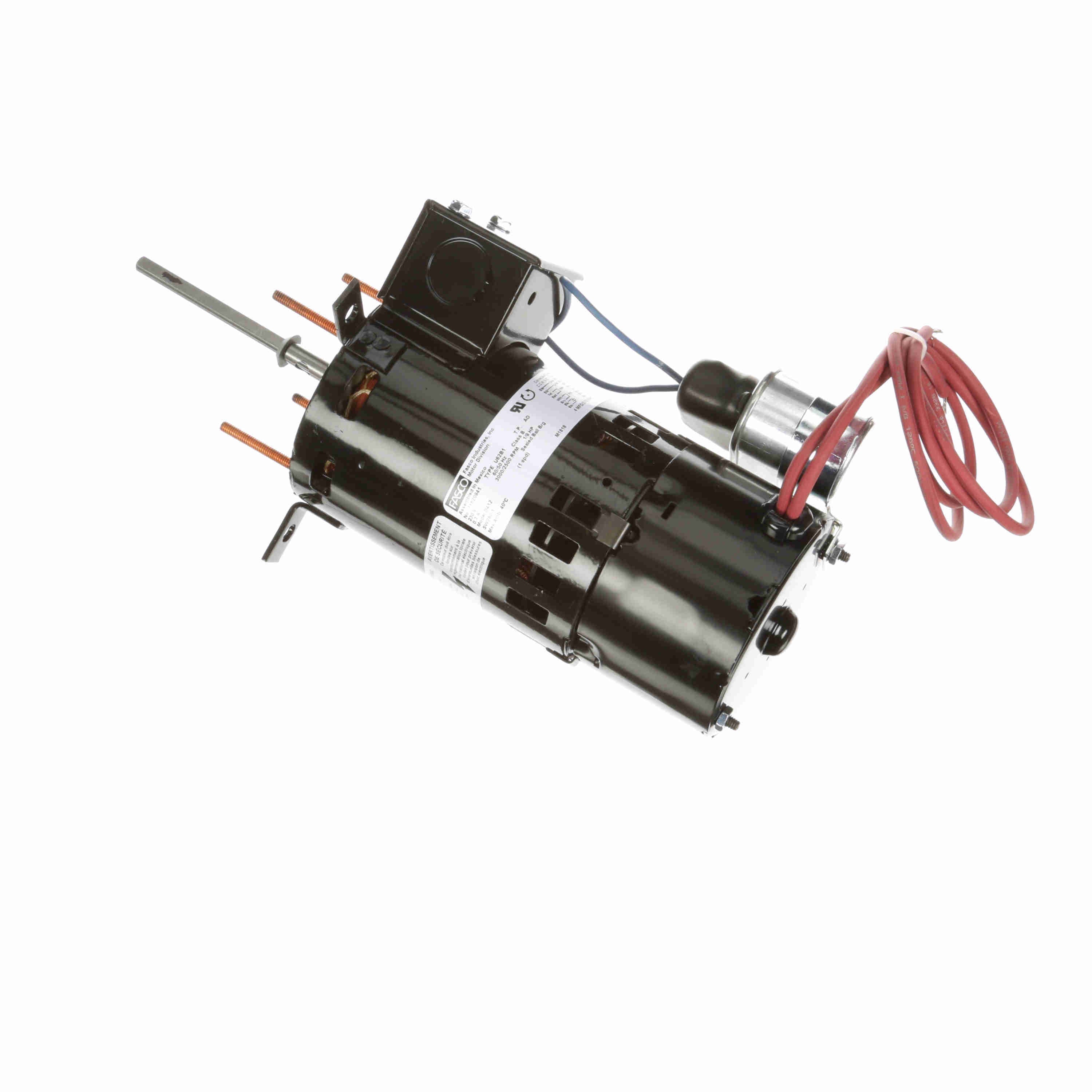

RBC REGAL BELOIT D412 Motor 1/9HP 230V 3000RPM 1Ph 3.3" Frame 1/4" Shaft
The Fasco D412 is a reliable Draft Inducer Motor designed for flue exhaust and draft boosting applications. This motor features a 1/9 HP motor, 3000 RPM speed, and operates on 230 Volts. It is built with a durable steel frame and ball bearings for longevity. The reversible rotation and open air-over enclosure make it versatile for various installations. This motor comes with a 1-year manufacturer's warranty and typically ships within 1 business day.
Technical Details
The Fasco D412 is a 1/9 HP, 230V draft inducer motor with a nameplate speed of 3000 RPM. It operates at 1 speed with a single phase and features a reversible rotation. The motor has an open air-over enclosure type and a steel frame with a 3.3-inch diameter. It is equipped with ball bearings on both the DE and ODE sides, a 1/4-inch shaft diameter with a 3.80-inch extension, and a flat shaft type. The motor is thermally protected and has a service factor of 1. Its insulation class is B, with a maximum ambient temperature of 40°C. The motor is UL Recognized and CSA certified.
Technical Specifications
| Voltage | 230 |
| Horsepower | 1/9 |
| RPM | 3000 |
| Phase | 1 |
| Frame Size | 3.3\ |
| Enclosure | OAO |
| Frequency | 60 |
| Full Load Amps | 0.7 |
| Shaft Diameter | 1/4 |
| Shaft Length | 3.80 |
| Mounting | Extended Studs |
| Service Factor | 1 |
| Insulation Class | B |
| Rotation Direction | Reversible |
| Certifications | UL, CSA |
