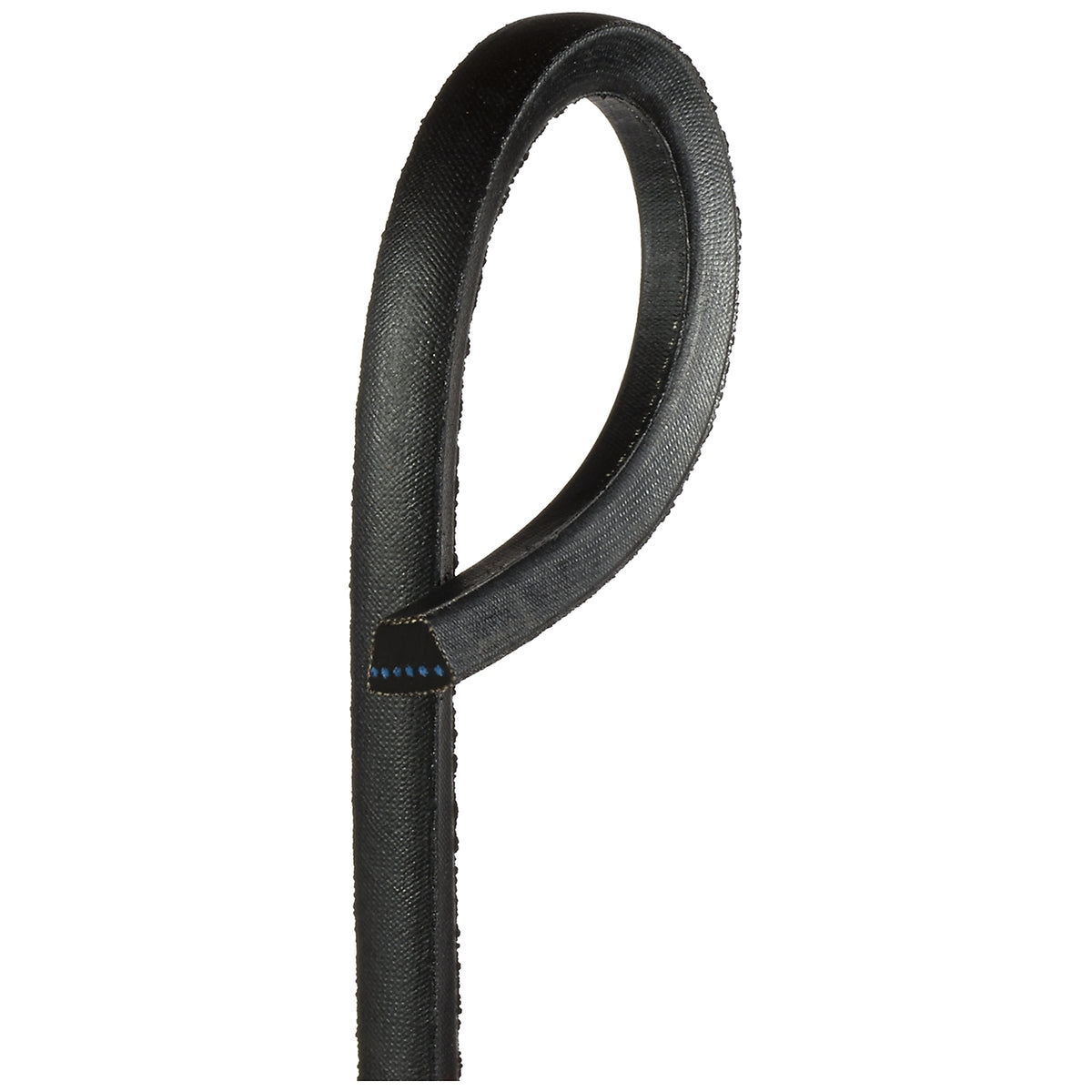

GATES 90022074 A74 Wrapped Belt, 74" Outside Length, 1/2" Top Width
The Gates 3/A74 Hi-Power II PowerBand V-Belt is a robust, banded V-belt designed for heavy-duty applications. Featuring a cogged (Tri-Power® Molded Notch) design for enhanced grip and efficiency, this belt offers superior stability and load capacity due to its multiple strands joined by a common backing. Constructed with a durable Neoprene body compound and strong Polyester Cord tensile members, it ensures reliable power transmission and a long service life. Its black color is standard for industrial belts.
Technical Details
This is a Gates A-section, banded V-belt with a pitch length of 74 inches and an outside circumference of 76 inches. It features a cogged (Tri-Power® Molded Notch) design and has 3 bands. The belt is constructed with a Neoprene material and reinforced with Polyester Cord. It operates within a temperature range of -30°F to 185°F. The belt section is 'A', with a width of 1/2", a thickness of 5/16", and a length of 74 inches.
Technical Specifications
| Belt Section | A |
| Outside Circumference | 76 inches |
| Pitch Length | 74 inches (from the table in the CONTEXT) |
| Top Width | 1/2" |
| Thickness | 5/16" |
| Cord Material | Polyester Cord |
| Cogged | Yes |
| Max Operating Temp | 185°F |
| Min Operating Temp | -30°F |
