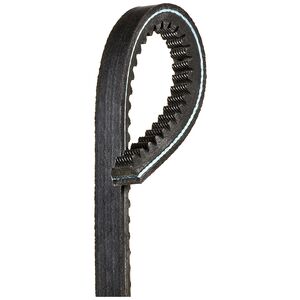

Gates BX88 Tri-Power Classical Section Molded Notch V-Belt

Engineered for demanding heavy-duty applications, the Gates BX88 Tri-Power V-Belt delivers superior performance. Its raw edge construction and specialized notch design are ideal for drives utilizing small diameter pulleys and back idlers. The advanced ethylene EPDM compound construction ensures resistance to cracking and exceptional performance across a wide temperature range. Experience smoother operation with a machined belt edge for precise pulley groove contact, reducing slippage and wear. Flex-bonded cords provide robust load distribution and shock absorption, preventing cord deterioration. This belt meets RMA oil and heat resistant standards and static conductivity requirements, making it a reliable choice for challenging environments.

Technical Details

The Gates BX88 is a single-strand, notched V-belt with a BX section and Tri-Power Molded Notch construction. It features a 91-inch outside circumference and a top width of 0.66 inches (17mm). Constructed with EPDM belt material and polyester cord material, it is designed for oil and heat resistance, as well as static conductivity. The belt operates within a temperature range of -58°F to +248°F (-50°C to +120°C).

Technical Specifications
