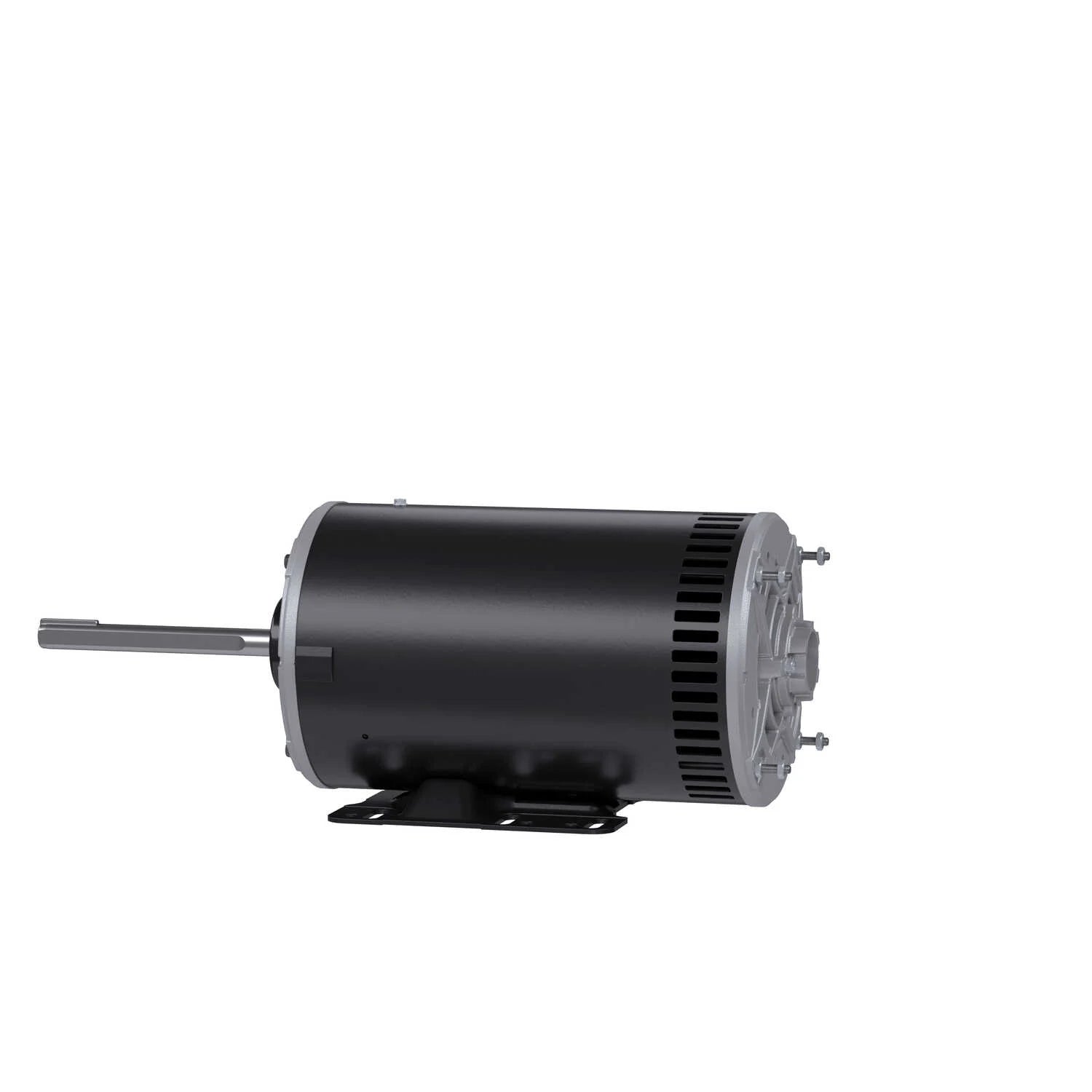

H1051AV1 FAN MOTOR 1.5HP 1140RPM 208-230/460V OPAO

This Century Juggernaut fan motor is designed for demanding applications, offering a robust 1.5 HP and 1140 RPM for efficient operation. It features a 70°C maximum ambient temperature rating and Class F insulation for durability. The motor is inverter duty and VFD compatible, making it ideal for commercial condenser fans controlled by variable frequency drives. It includes a removable 56H base for flexible mounting options and an enclosed shaft end for added protection.

Technical Details

The Century H1051AV1 is a 3-phase, single-speed squirrel cage motor with 1.5 HP and an operating speed of 1140 RPM. It supports a voltage range of 208-230/460V and has a service factor of 1.00. The motor features ball bearings, auto overload protection, and an Open Air Over enclosure. Its insulation class is F, and it can operate in ambient temperatures up to 70°C. The NEMA frame is 56HZ, and it has a removable 56H base. The motor's dimensions are 23.00 inches in length, 10.00 inches in width, and 9.00 inches in height.
