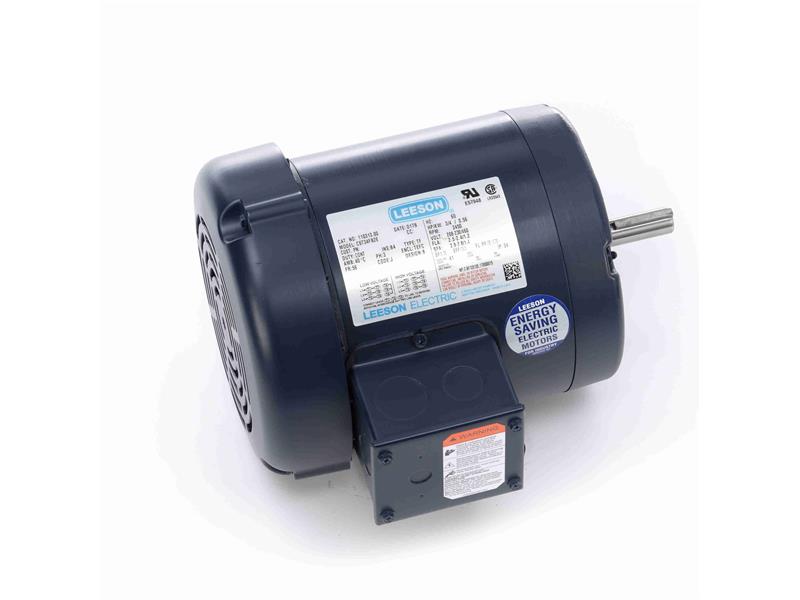

Leeson 110313.00 3/4 HP 3600 RPM 208-230/460V 3 Phase TEFC Motor

This Leeson 110313.00 electric motor is a 3/4 HP, 3600 RPM, 3-phase general purpose motor designed for reliability and performance. Featuring a Totally Enclosed Fan Cooled (TEFC) enclosure, it's built with steel construction and dynamically balanced rotors for smooth operation. This motor is UL recognized and CSA certified, making it suitable for a wide range of applications including pumps, compressors, fans, and blowers. It comes with a rigid base mounting for secure installation.

Technical Details

The Leeson 110313.00 is a 3/4 HP, 3-phase electric motor operating at 3600 RPM. It is designed for dual voltage compatibility, supporting 208-230V and 460V. The motor features a TEFC enclosure, a NEMA frame size of 56, and a continuous duty rating. It has an insulation class of B and a service factor of 1.15. The motor weighs 25 lbs and has a shaft diameter of 5/8 inches. It is UL recognized and CSA certified.

Technical Specifications
