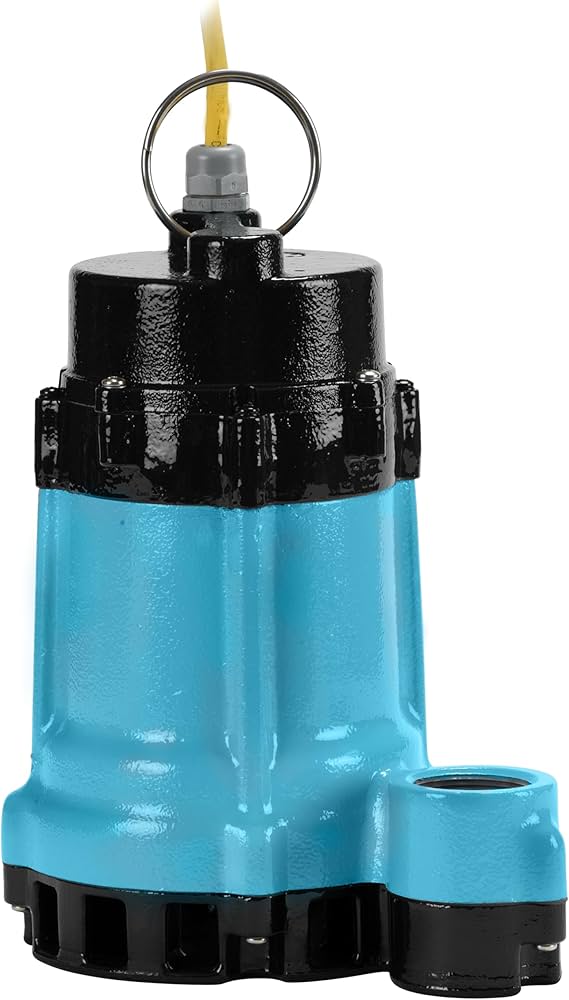

Little Giant 10EN-CIM Fully Submersible Effluent Sump Pump

The Little Giant 10EN Series pumps are designed for continuous duty in dewatering and light effluent applications. Featuring a 1/2 HP Permanent Split Capacitor (PSC) motor, these pumps offer energy efficiency, lower current draw, and cooler operation for extended durability. With a full-load rating of 8.0 amps, the 10EN delivers robust performance, pumping 67 GPM at 5 ft. of head and a maximum shut-off head of 30 ft. The cast iron pump housing with an epoxy coating provides excellent corrosion and rust resistance, complemented by a polypropylene base. Stainless steel components ensure longevity, while mechanical seals with carbon and ceramic faces offer reliable sealing. The pump features a 1 1/2 in. FNPT discharge and can handle liquid and solid waste materials up to 1/2 in. in diameter. Available in manual or automatic operation with integrated or piggyback float switch options.

Technical Details

This Little Giant 10EN-CIM is a 1/2 HP, 115 VAC submersible effluent sump pump. It features a cast iron pump housing with an epoxy coating and a polypropylene base, along with stainless steel fasteners. The pump has a 1 1/2 in. FNPT discharge and is capable of handling solids up to 1/2 inch in diameter. It delivers a maximum flow rate of 67 GPM at 5 ft. of head and a shut-off head of 30 ft. The motor is a 1/2 HP PSC type with thermal overload protection and runs on 115 VAC. The power cord is 10 ft. long and is SJTW type. The mechanical seal is made of carbon/ceramic with nitrile parts.

Technical Specifications
