This Marathon C333 motor is a 3/4 HP, single-phase unit operating at 3450 RPM. It is designed for dual voltage compatibility, supporting 115V and 208-230V. The motor features a 56J NEMA frame and an Open Drip Proof (ODP) enclosure. It has a service factor of 1.5 and utilizes a capacitor start design for high starting torque. The bearings are double sealed ball bearings, mechanically locked on the shaft end. The shaft is made of 416 stainless steel and is threaded with a slinger. The overall length of the motor is 12.40 inches, with a motor shell length of 7.75 inches. It includes an automatic thermal protector and has a fixed CW rotation when viewed opposite the shaft end. The efficiency is rated at 65.6%.

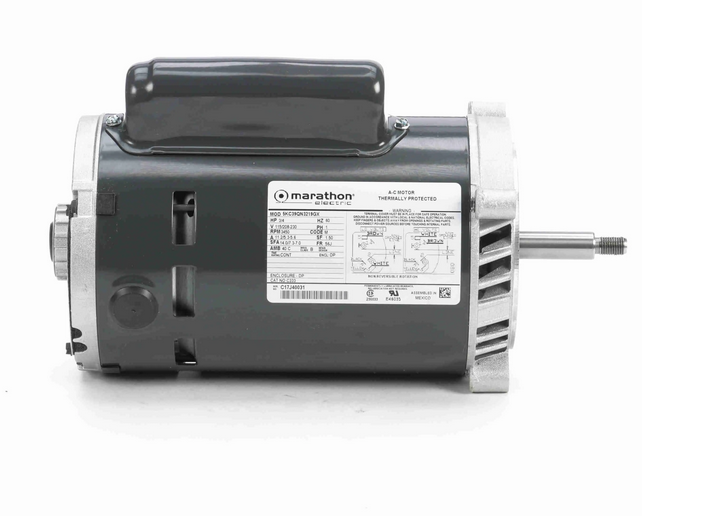

C333 Motor 3/4HP 3600RPM 115/230V 1PH 56J Frame 5/8" Shaft
Specifications
| Voltage | 1/2 V |
|---|---|
| Horsepower | 3/4 HP |
| RPM | 3600 RPM |
| Phase | 1 Ph |
| Frame | 56J |
| Frequency | 60 Hz |
| Shaft Diameter | 5/8 |
